Washer Nozzle For Laser Distance Regulation Control Module, Removing And Installing: Removing

-- Remove the lock carrier cover. Refer to OVERVIEW - BUMPER COVER .

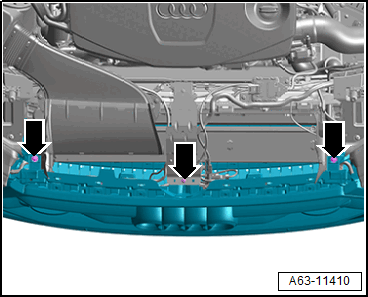

-- RS 6 Avant, RS 7 Sportback: remove the bolts -arrows- and remove the bumper cover slightly forward.

Courtesy of AUDI OF AMERICA, LLC

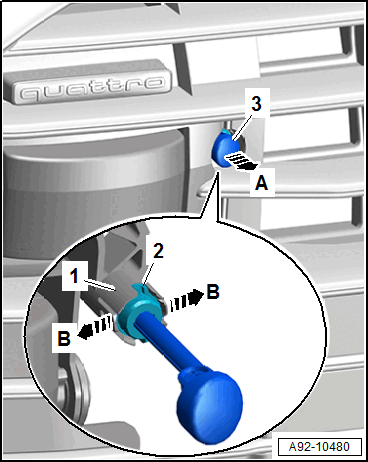

-- Pull the telescoping washer nozzle -3- out slightly in direction of -arrow A- and hold it in place.

Courtesy of AUDI OF AMERICA, LLC

-- Release the catches in direction of -B arrows-.

-- Push the washer nozzle -2- slightly out of the mount -1- from the back.

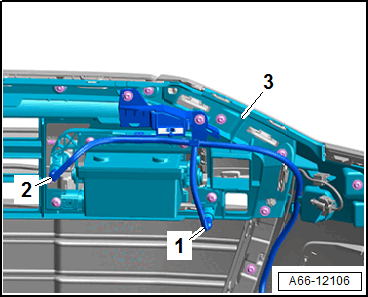

-- Release the clips and remove the washer fluid hoses -1 and 2-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the washer nozzle from the mount.
