Component Location Overview - Windshield Wiper System

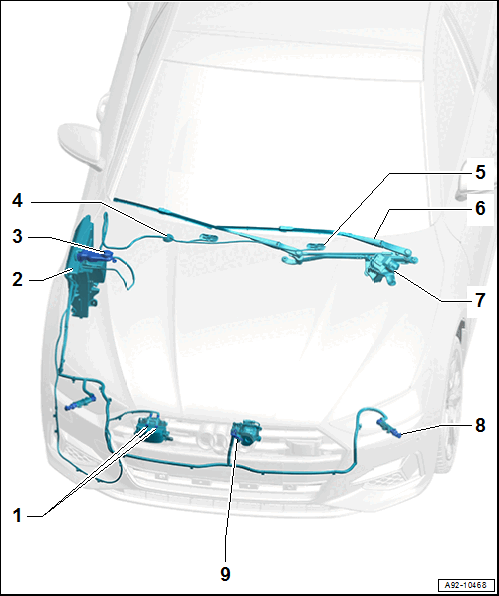

Fig 1: Windshield Wiper System Overview

Courtesy of AUDI OF AMERICA, LLC

1. Spray Nozzles
   • For Laser Distance Regulation Control Module -J1122-
   • Different component locations
   • Overview - Auxiliary Washer System, A6. Refer to Auxiliary Washer System, A6 .
   • Overview - Auxiliary Washer System, A7 Sportback. Refer to Auxiliary Washer System, A7 Sportback .
2. Washer Fluid Reservoir
   • Overview. Refer to OVERVIEW - WINDSHIELD WASHER SYSTEM .
3. Filler Neck
   • For the washer fluid reservoir
   • Overview. Refer to OVERVIEW - WINDSHIELD WASHER SYSTEM .
4. Grommet
   • Equipped on some models. Refer to the Parts Information
   • For the washer fluid hose in the front lid
5. Washer Nozzle
   • Overview. Refer to OVERVIEW - WINDSHIELD WASHER SYSTEM .
6. Windshield Wiper Arm
   • Overview. Refer to OVERVIEW - WINDSHIELD WIPER SYSTEM .
7. Windshield Wiper Motor -V-
   • With the Wiper Motor Control Module -J400-
   • Overview. Refer to OVERVIEW - WINDSHIELD WIPER SYSTEM .
8. Headlamp Washer System Washer Nozzle
   • Overview. Refer to OVERVIEW - HEADLAMP WASHER SYSTEM .
9. Night Vision System Camera -R212- Washer Nozzle
   • Overview. Refer to OVERVIEW - HEADLAMP WASHER SYSTEM .
