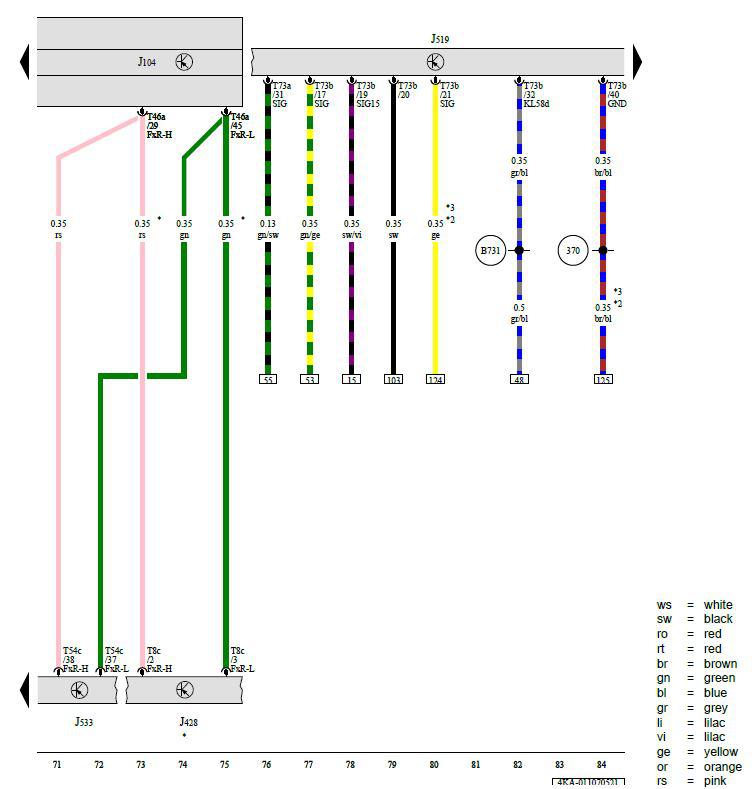

ABS Control Module, Vehicle Electrical System Control Module, Data Bus on Board Diagnostic Interface

Courtesy of AUDI OF AMERICA, LLC

J104 -  ABS Control Module

J428 -  Control Module for Adaptive Cruise Control

J519 -  Vehicle Electrical System Control Module

J533 -  Data Bus on Board Diagnostic Interface

T8c -  8-Pin Connector, Black

T46a -  46-Pin Connector, Black

T54c -  54-Pin Connector, Black

T73a -  73-Pin Connector, Black, Naturally Cloudy

T73b -  73-Pin Connector, Black, Black

370 -  Ground Connection 5 (in Main Wiring Harness)

B731 -  Connection 58s (in Main Wiring Harness) 1

* -  For Vehicles with Adaptive Cruise Control (ACC)

*2 -  For Vehicles with Traffic Jam Pilot

*3 -  For Vehicles with Hybrid Drive
