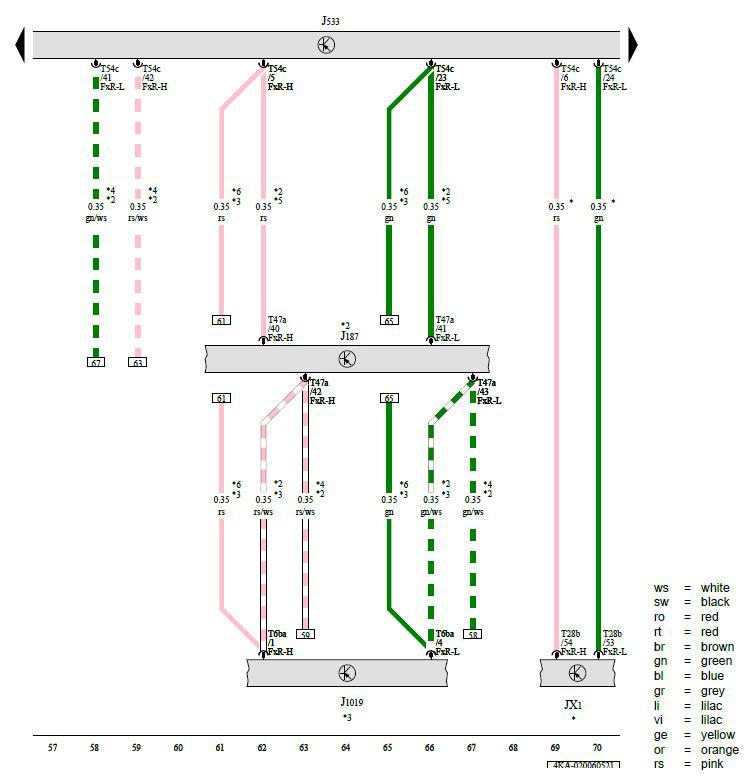

Electric Drive Power and Control Electronics, Differential Lock Control Module, Data Bus on Board Diagnostic Interface, Rear Axle Steering Control Module
JX1 - Electric Drive Power and Control Electronics
J187 - Differential Lock Control Module
J533 - Data Bus on Board Diagnostic Interface
J1019 - Rear Axle Steering Control Module
T6ba - 6-Pin Connector, Black
T28b - 28-Pin Connector, Black
T47a - 47-Pin Connector, Black
T54c - 54-Pin Connector, Black
* - For Vehicles with Hybrid Drive
*2 - For Vehicles with Rear Final Drive - Sport Differential
*3 - For Vehicles with Rear Axle Steering
*4 - For Vehicles Without Rear Axle Steering
*5 - Version 1
*6 - Version 2
