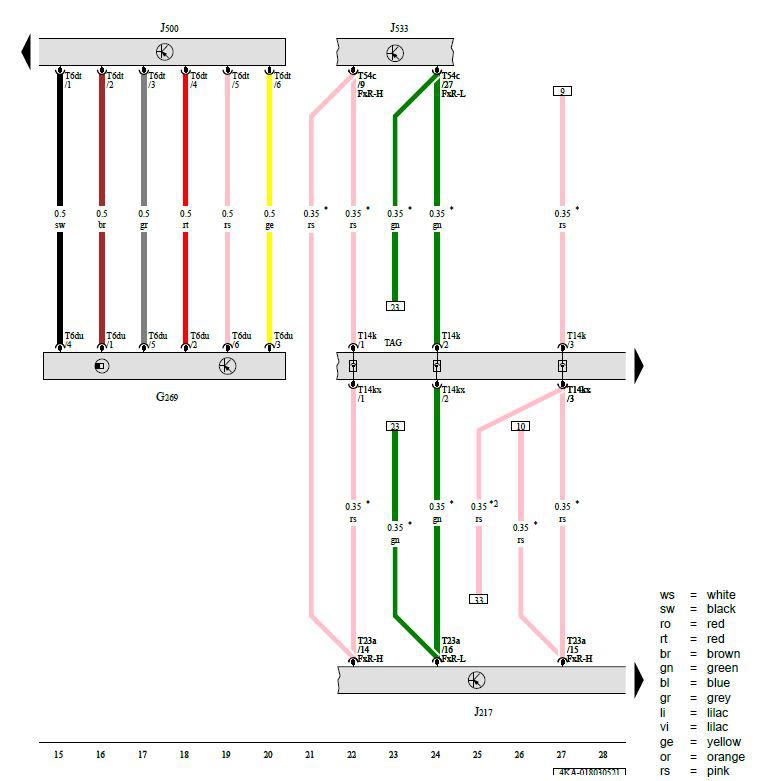

Steering Torque Sensor, Transmission Control Module, Power Steering Control Module, Data Bus on Board Diagnostic Interface

Courtesy of AUDI OF AMERICA, LLC

G269 -  Steering Torque Sensor

J217 -  Transmission Control Module

J500 -  Power Steering Control Module

J533 -  Data Bus on Board Diagnostic Interface

T6dt -  6-Pin Connector, Black

T6du -  6-Pin Connector, Black

T14k -  14-Pin Connector, Black

T14kx -  14-Pin Connector, Black

T23a -  23-Pin Connector, Black

T54c -  54-Pin Connector, Black

TAG -  Automatic Transmission Coupling Point

* -  Depending on Equipment

*2 -  For Vehicles with a 8-Cylinder Engine
