Component Location Overview - Components In Front Vehicle Interior, Q8

Courtesy of AUDI OF AMERICA, LLC

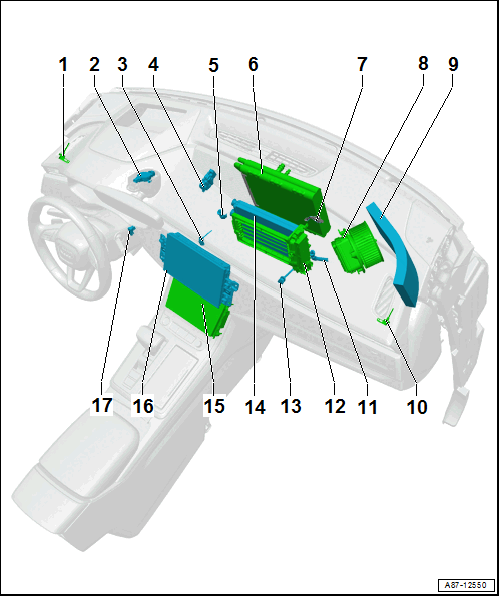

1. Left Front Upper Body Vent Temperature Sensor -G385-
   • Removing and Installing. Refer to Left Front Upper Body Vent Temperature Sensor -G385-, REMOVING AND INSTALLING .
2. Rain/Light Recognition Sensor -G397-
   • With Humidity Sensor -G355-
   • Removing and installing. Refer to RAIN/LIGHT RECOGNITION SENSOR, REMOVING AND INSTALLING .
3. Left Footwell Vent Temperature Sensor -G261-
   • Removing and Installing. Refer to Left Footwell Vent Temperature Sensor -G261-, REMOVING AND INSTALLING .
4. Adjustment Motor
   • Example for all adjustment motors
   • Component Location Overview. Refer to COMPONENT LOCATION OVERVIEW - FRONT ADJUSTMENT MOTORS .
5. Left condensation water drain hose
   • Checking. Refer to CONDENSATION WATER DRAIN, CHECKING .
   • Removing and Installing. Refer to CONDENSATION WATER DRAIN, REMOVING AND INSTALLING .
6. Evaporator
   • Removing and Installing. Refer to EVAPORATOR, REMOVING AND INSTALLING .
7. Evaporator Vent Temperature Sensor -G263-
   • On RHD vehicles, the Evaporator Vent Temperature Sensor -G263- is installed from the left side into the evaporator housing of the heater and A/C unit (in the area behind the coolant pipes for the heat exchanger).
   • Removing and Installing. Refer to Evaporator Vent Temperature Sensor -G263-, REMOVING AND INSTALLING .
8. Fresh Air Blower -V2-
   • With Fresh Air Blower Control Module -J126-
   • Removing and Installing. Refer to Fresh Air Blower -V2- WITH Fresh Air Blower Control Module -J126-, REMOVING AND INSTALLING .
9. Dust and Pollen Filter
   • Removing and Installing. Refer to DUST AND POLLEN FILTER, REMOVING AND INSTALLING .
10. Right Front Upper Body Vent Temperature Sensor -G386-
    • Removing and Installing. Refer to Right Front Upper Body Vent Temperature Sensor -G386-, REMOVING AND INSTALLING .
11. Right condensation water drain hose
    • Checking. Refer to CONDENSATION WATER DRAIN, CHECKING .
    • Removing and Installing. Refer to CONDENSATION WATER DRAIN, REMOVING AND INSTALLING .
12. Auxiliary Heater Control Module -J604-
    • With Auxiliary Heater Heating Element -Z35-
    • Cannot be separated from each other
    • Removing and Installing. Refer to Auxiliary Heater Control Module .
13. Right Footwell Vent Temperature Sensor -G262-
    • Removing and Installing. Refer to Right Footwell Vent Temperature Sensor -G262-, REMOVING AND INSTALLING .
14. Heater Core
    • Removing and Installing. Refer to HEATER CORE, REMOVING AND INSTALLING .
15. Front Information Display Control Head 2 -J1060-
    • Removing and Installing. Refer to Front Information Display Control Head 2 -J1060-, REMOVING AND INSTALLING, Q8 .
16. Front Information Display Control Head -J685-
    • Removing and Installing. Refer to INFOTAINMENT SYSTEM DISPLAY, REMOVING AND INSTALLING
17. Instrument Panel Temperature Sensor -G56-
    • Removing and Installing. Refer to Instrument Panel Temperature Sensor -G56-, REMOVING AND INSTALLING .
