Comfort System Central Control Module -J393-, REMOVING AND INSTALLING: Removing

-- Remove the Relay and Fuse Panel 3 -SR3- and move it to the side with the wires still connected. Refer to COMPONENT LOCATION OVERVIEW - RELAY PANELS, FUSE PANELS AND E-BOXES .

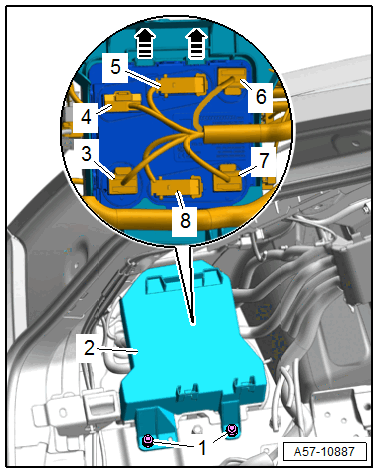

-- Remove the nuts -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the mount -2- at the same time guide out the body.

-- Release and disconnect the connectors -3 to 8-.

-- Release the retainers in direction of -arrows- and guide the Comfort System Central Control Module -J393- out of the mount.
