Component Location Overview - Central Locking

Courtesy of AUDI OF AMERICA, LLC

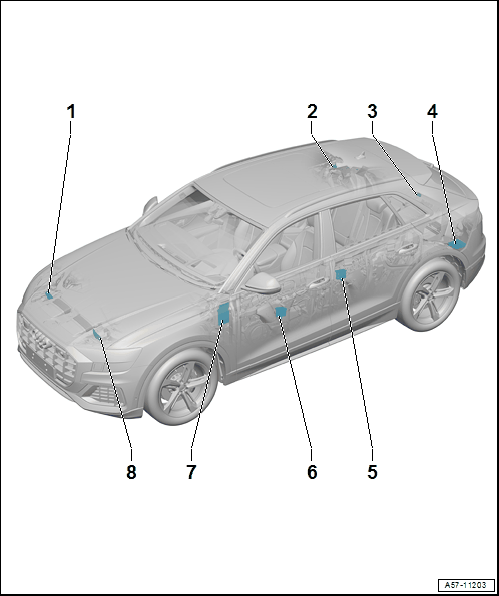

1. Hood Contact Switch 2 -F329-
   • In the right latch
   • Removing and installing. Refer to Engine Hood Contact Switch -F266- /Hood Contact Switch 2 -F329-, REMOVING AND INSTALLING .
2. Fuel Filler Door Lock Motor -V155-
   • Removing and installing. Refer to Fuel Filler Door Lock Motor -V155-, REMOVING AND INSTALLING .
3. Latch
   • Rear Lid Lock Unit -VX25-
     • With Rear Lid Central Locking System Motor -V53-, Lock Pawl Contact Switch -F443-, equipped on some models: Rear Lid Contact Switch -F111-
   • Removing and installing. Refer to LATCH, REMOVING AND INSTALLING .
4. Comfort System Central Control Module -J393-
   • Removing and installing. Refer to Comfort System Central Control Module -J393-, REMOVING AND INSTALLING .
   • Mount tightening specifications. Refer to Fig 1.
5. Door Control Module
   • Rear
     • Left Rear Door Control Module -J388-, Right Rear Door Control Module -J389-
   • Removing and installing. Refer to Left Rear Door Control Module -J388- AND Right Rear Door Control Module -J389-, REMOVING AND INSTALLING .
6. Door Control Module
   • Front
     • Driver Door Control Module -J386-, Front Passenger Door Control Module -J387-
   • Removing and installing. Refer to Driver Door Control Module -J386- AND Front Passenger Door Control Module -J387-, REMOVING AND INSTALLING .
7. Vehicle Electrical System Control Module -J519-
   • Component Location Overview. Refer to COMPONENT LOCATION OVERVIEW - CONTROL MODULES .
8. Engine Hood Contact Switch -F266-
   • In the left latch
   • Removing and installing. Refer to Engine Hood Contact Switch -F266- /Hood Contact Switch 2 -F329-, REMOVING AND INSTALLING .

Tightening Specifications for Comfort System Central Control Module J393 Mount

Fig 1: Comfort System Central Control Module -J393- Mount

Courtesy of AUDI OF AMERICA, LLC
