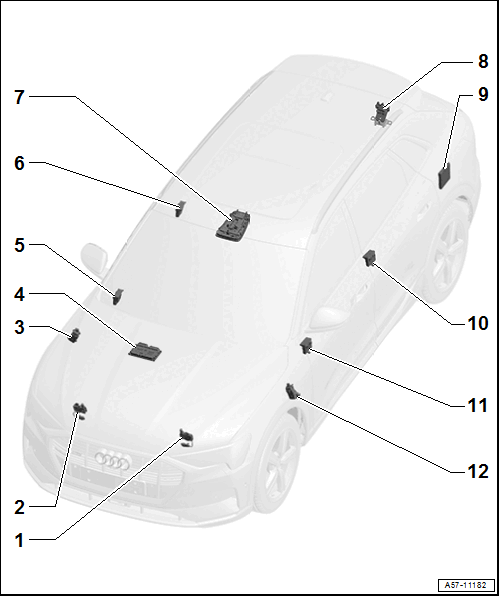

Component Location Overview - Central Locking
- Left Lid Lock
- With Engine Hood Contact Switch -F266-
- The components cannot be replaced separately.
- If the components are faulty replace the latch
- Removing and Installing. Refer to LATCH, REMOVING AND INSTALLING .
- Right Lid Lock
- With Hood Contact Switch 2 -F329-
- The components cannot be replaced separately.
- If the components are faulty replace the latch
- Removing and Installing. Refer to LATCH, REMOVING AND INSTALLING .
- Drive Unit for Charging Socket 2 Cover -VX87-
- Removing and Installing. Refer to CHARGE DOOR UNIT, REMOVING AND INSTALLING .
- Vehicle Electrical System Control Module -J519-
- Component Location Overview. Refer to COMPONENT LOCATION OVERVIEW - CONTROL MODULES .
- Front Passenger Door Control Module -J387-
- Removing and Installing. Refer to Driver Door Control Module -J386- AND Front Passenger Door Control Module -J387-, REMOVING AND INSTALLING .
- Passenger Side Rear Door Control Module -J927-
- Removing and Installing. Refer to Left Rear Door Control Module -J388- AND Right Rear Door Control Module -J389-, REMOVING AND INSTALLING .
- Anti-Theft Alarm System Sensor -G578-
- Overview. Refer to OVERVIEW - INTERIOR MONITORING .
- Rear Latch
- With Rear Lid Central Locking System Motor -V53- /Rear Lid Alarm Switch -F123-
- The components cannot be replaced separately.
- If the components are faulty replace the latch
- Overview. Refer to OVERVIEW - REAR LID .
- Comfort System Central Control Module -J393-
- Removing and Installing. Refer to Comfort System Central Control Module -J393-, REMOVING AND INSTALLING .
- Driver Side Rear Door Control Module -J926-
- Removing and Installing. Refer to Left Rear Door Control Module -J388- AND Right Rear Door Control Module -J389-, REMOVING AND INSTALLING .
- Driver Door Control Module -J386-
- Removing and Installing. Refer to Driver Door Control Module -J386- AND Front Passenger Door Control Module -J387-, REMOVING AND INSTALLING .
- Drive Unit for Charging Socket 1 Cover -VX86-
- Removing and Installing. Refer to CHARGE DOOR UNIT, REMOVING AND INSTALLING .
