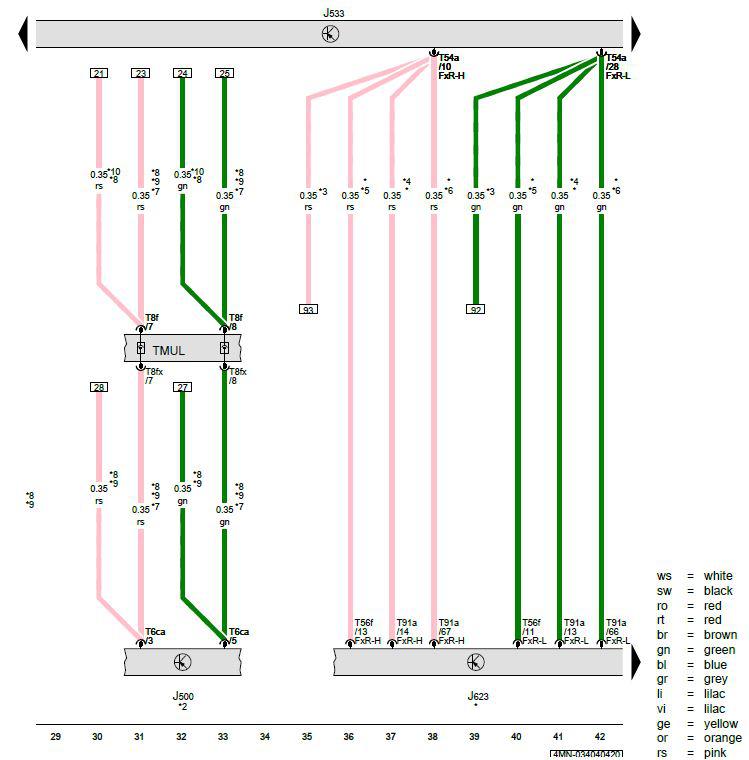

Power Steering Control Module, Data Bus on Board Diagnostic Interface, Engine/Motor Control Module
J500 - Power Steering Control Module
J533 - Data Bus on Board Diagnostic Interface
J623 - Engine/Motor Control Module
T6ca - 6-Pin Connector, Brown
T8f - 8-Pin Connector, Black
T8fx - 8-Pin Connector, Black
T54a - 54-Pin Connector, Black
T56f - 56-Pin Connector, Black
T91a - 91-Pin Connector, Black
TMUL - Coupling Point on Engine, Bottom Left
* - Refer to Applicable Engine Wiring Diagram
*2 - Refer to the Applicable Wiring Diagram for Electromechanical Power Steering
*3 - For Vehicles with Hybrid Drive
*4 - For Vehicles with 2.0L Gasoline Engine
*5 - For Vehicles with Gasoline Engine
*6 - For Vehicles with Diesel Engine
*7 - For Vehicles with a 8-Cylinder Engine
*8 - For Vehicles with Automatic Transmission
*9 - For Vehicles with Electromechanical Power Steering
*10 - For Vehicles with Highline Equipment
