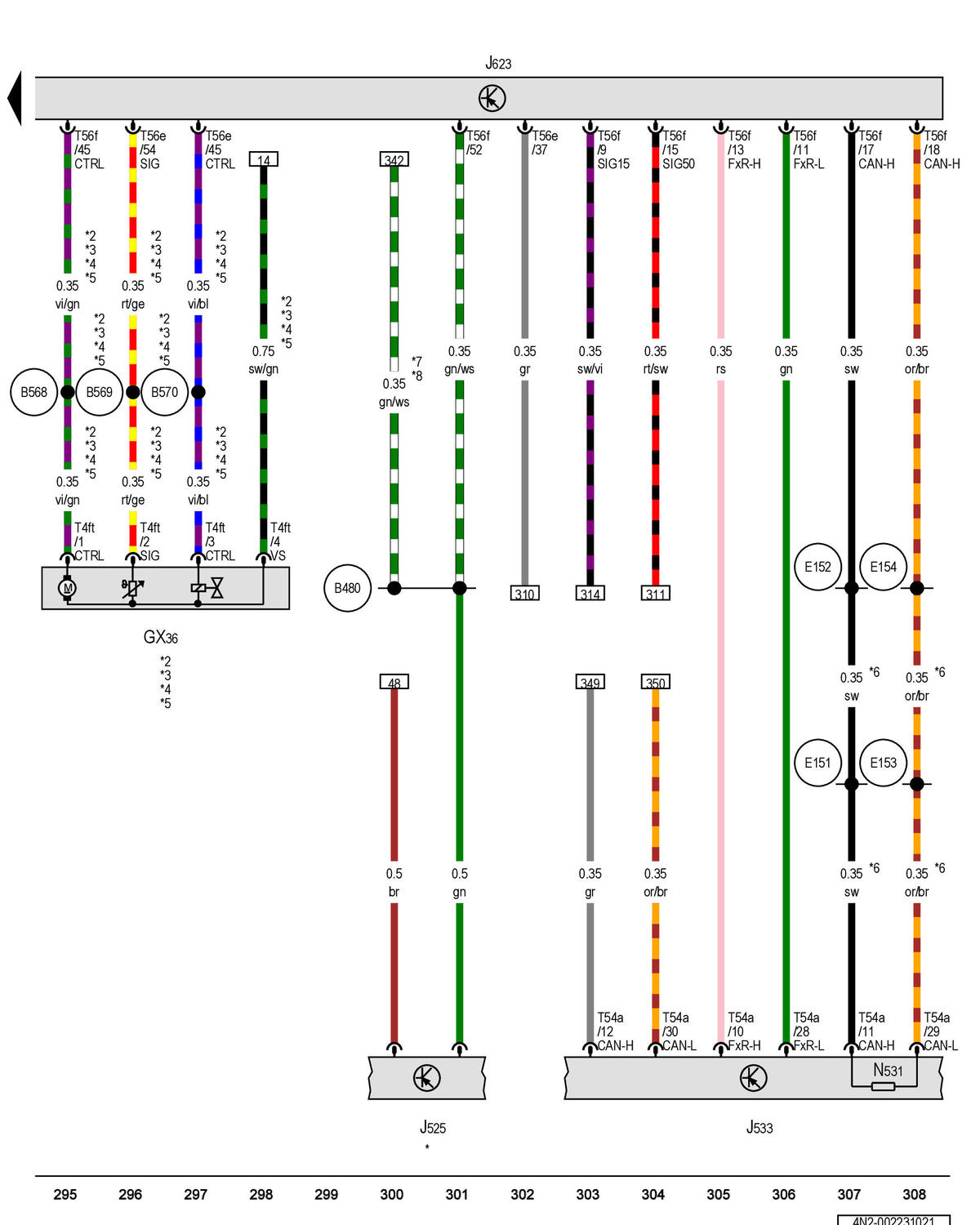

Fuel Tank Leak Detection Module, Data Bus On Board Diagnostic Interface, Engine/Motor Control Module
GX36
Fuel Tank Leak Detection Module
J525
Digital Sound System Control Module
J533
Data Bus on Board Diagnostic Interface
J623
Engine/Motor Control Module
N531
CAN Bus Wires End Resistance
T4ft
4-Pin Connector, Black
T54a
54-Pin Connector, Black
T56e
56-Pin Connector, Black, Green
T56f
56-Pin Connector, Black, Black
B480 Connection 16 (in Main Wiring Harness)
B568 Connection 35 (in Main Wiring Harness)
B569 Connection 36 (in Main Wiring Harness)
B570 Connection 37 (in Main Wiring Harness)
E151 Connection 1 (CAN Bus, Engine/Motor Control Module, High)
E152 Connection 2 (CAN Bus, Engine/Motor Control Module, High)
E153 Connection 1 (CAN Bus, Engine/Motor Control Module, Low)
E154 Connection 2 (CAN Bus, Engine/Motor Control Module, Low)
* Refer to Applicable Sound System Wiring Diagram
*2 For USA Only
*3 For Vehicles with China Equipment
*4 For Emissions Standard Euro 6 AG/H/I
*5 For Emissions Standard Euro 6 DG
*6 Diameter Depends on Equipment
*7 For Vehicles with a Long Wheelbase
*8 For Vehicles with Luxury Equipment
