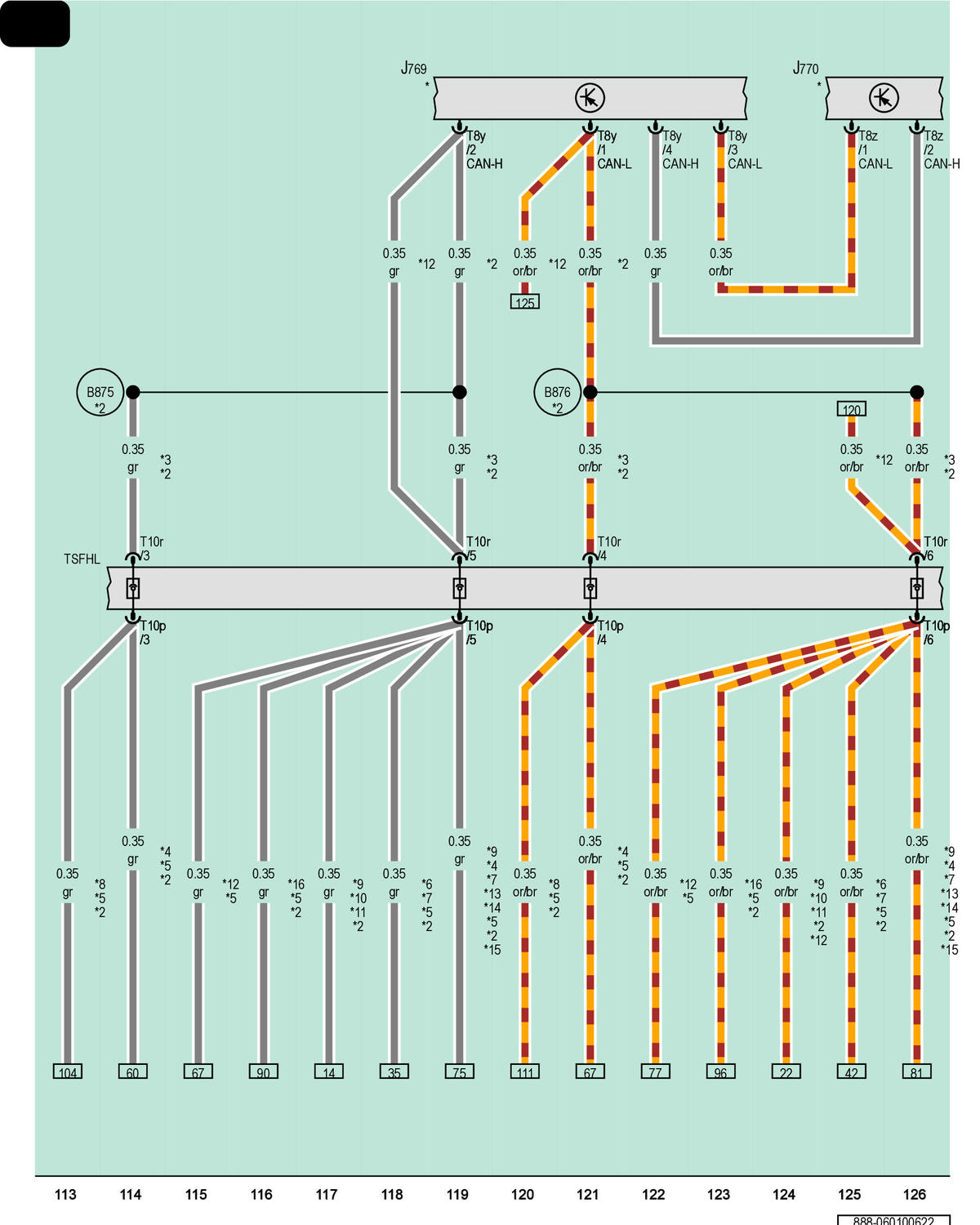

Lane Change Assistance Control Module, Lane Change Assistance Control Module 2

Courtesy of AUDI OF AMERICA, LLC

J769

Lane Change Assistance Control Module

J770

Lane Change Assistance Control Module 2

T8y

8-Pin Connector, Black

T8z

8-Pin Connector, Black

T10p

10-Pin Connector, Black

T10r

10-Pin Connector, Black

TSFHL

Coupling Point on Left Rear Bumper

B875

Driver Assistance Systems CAN Bus High Connection 6 (in Main Wiring Harness)

B876

Driver Assistance Systems CAN Bus Low Connection 6 (in Main Wiring Harness)

*

Refer to Applicable Lane Change Assistance Wiring Diagram

*2

Sportback

*3

Depending on Equipment

*4

For Vehicles Without Rearview Camera System

*5

For Vehicles with Lane Change Assistance Control Module

*6

For Vehicles with Driver Assistance Systems Front Camera

*7

For Vehicles without Peripheral Camera

*8

For Vehicles with Rearview Camera System

*9

For Vehicles Without Driver Assistance Systems Front Camera

*10

For Vehicles with Headlamp Range Control Module

*11

For Vehicles with Control Module for Adaptive Cruise Control

*12

Sedan

*13

For Vehicles Without Control Module for Adaptive Cruise Control

*14

For Vehicles Without Headlamp Range Control Module

*15

CAN Bus Connection Wire

*16

For Vehicles with Peripheral Camera
