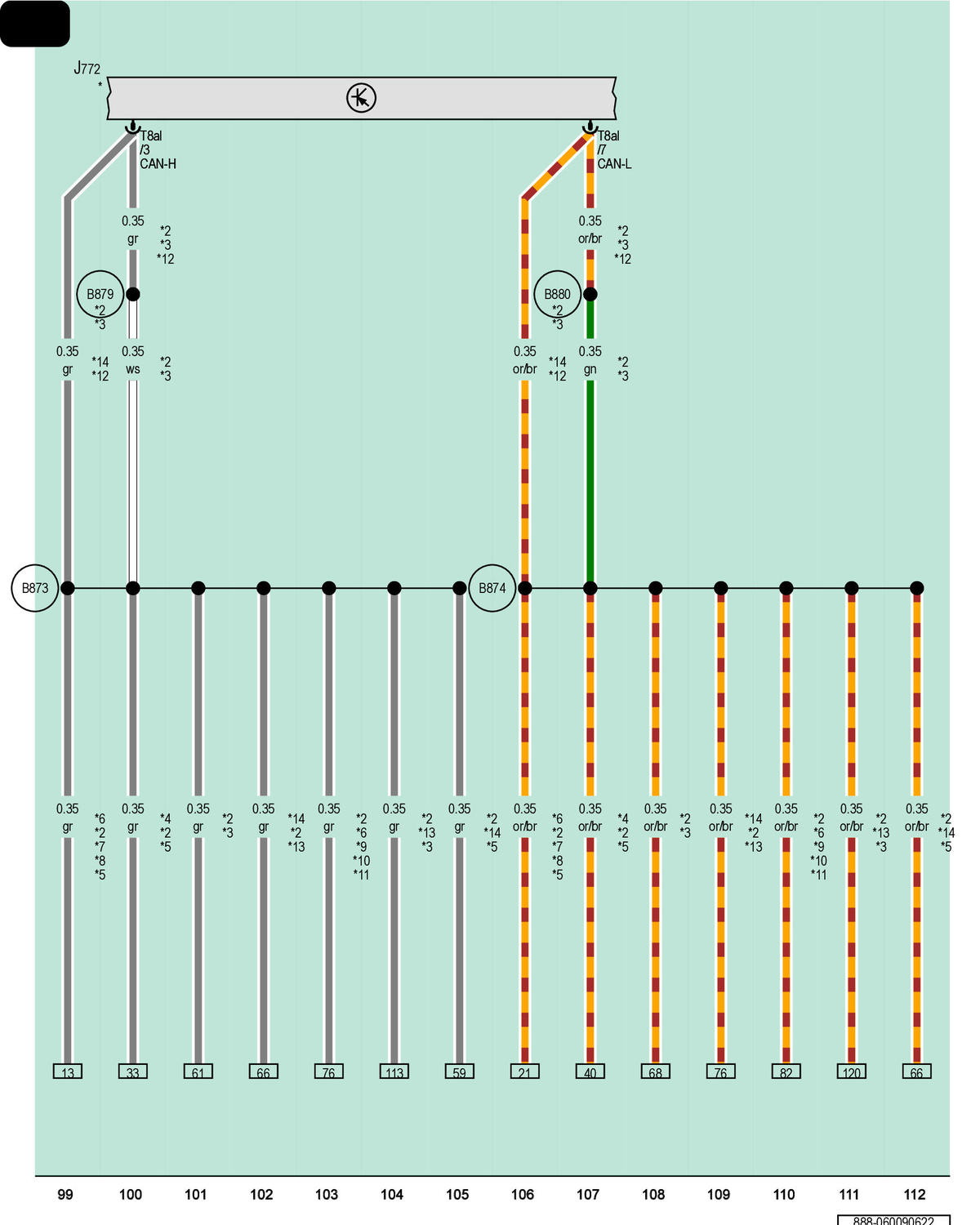

Rearview Camera System Control Module

Courtesy of AUDI OF AMERICA, LLC

J772

Rearview Camera System Control Module

T8al

8-Pin Connector, Black

B873

Driver Assistance Systems CAN Bus High Connection 5 (in Main Wiring Harness)

B874

Driver Assistance Systems CAN Bus Low Connection 5 (in Main Wiring Harness)

B879

Driver Assistance Systems CAN Bus High Connection 8 (in Main Wiring Harness)

B880

Driver Assistance Systems CAN Bus Low Connection 8 (in Main Wiring Harness)

*

Refer to Applicable Wiring Diagram for the Rearview Camera (Rear Assist)

*2

For Vehicles with Rearview Camera System

*3

Sportback

*4

For Vehicles with Driver Assistance Systems Front Camera

*5

For Vehicles Without Lane Change Assistance Control Module

*6

For Vehicles Without Driver Assistance Systems Front Camera

*7

For Vehicles with Headlamp Range Control Module

*8

For Vehicles with Control Module for Adaptive Cruise Control

*9

For Vehicles Without Control Module for Adaptive Cruise Control

*10

For Vehicles Without Headlamp Range Control Module

*11

CAN Bus Connection Wire

*12

Diameter Depends on Equipment

*13

For Vehicles with Lane Change Assistance Control Module

*14
