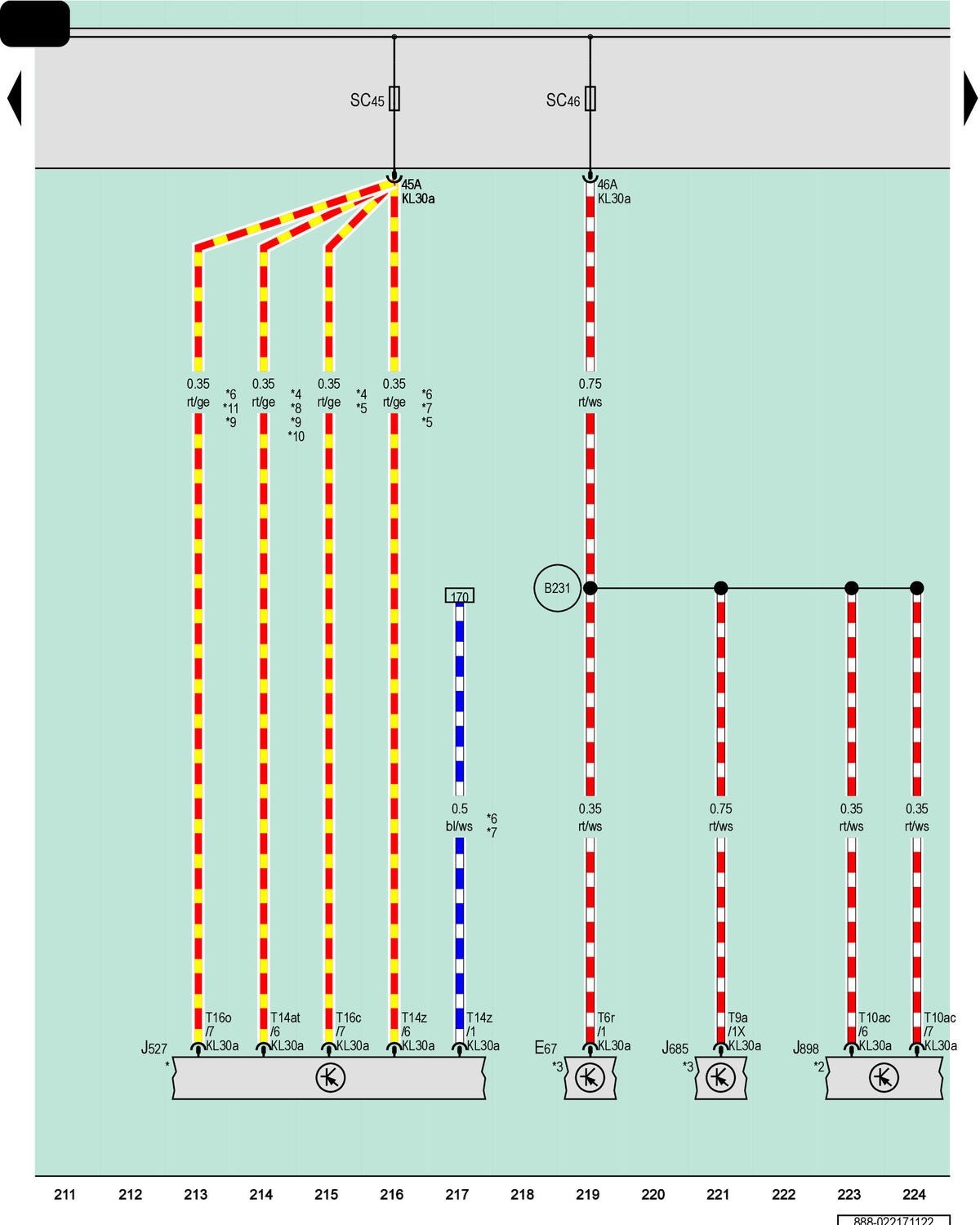

Driver Volume Control, Steering Column Electronics Control Module, Front Information Display Control Head, Windshield Projection Head Up Display Control Module, Fuse Panel C
E67
Driver Volume Control
J527
Steering Column Electronics Control Module
J685
Front Information Display Control Head
J898
Windshield Projection Head Up Display Control Module
SC
Fuse Panel C
SC45
Fuse 45 (On Fuse Panel C)
SC46
Fuse 46 (On Fuse Panel C)
T6r
6-Pin Connector, Red
T9a
9-Pin Connector, Black
T10ac
10-Pin Connector, Black
T14at
14-Pin Connector, Brown
T14z
14-Pin Connector, Black
T16c
16-Pin Connector, Black
T16o
16-Pin Connector, Black
B231
Positive Connection 5 (30a) (in Interior Wiring Harness)
*
Refer to Applicable Steering Column Electronics Wiring Diagram
*2
Refer to Applicable Windshield Projection Wiring Diagram
*3
Refer to Applicable MMI (Information Electronics) Wiring Diagram
*4
For Vehicles Without Heated Steering Wheel
*5
Not for USA
*6
For Vehicles with Heated Steering Wheel
*7
For Vehicles with China Equipment
*8
Through November 2021
*9
For USA Only
*10
From June 2021
*11
From November 2021
