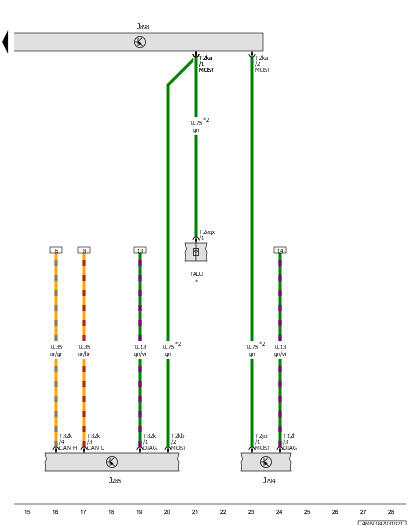

Instrument Cluster Control Module, Information Electronics Control Module 1, Windshield Projection Head Up Display Control Module

Courtesy of AUDI

J285

Instrument Cluster Control Module

J794

Information Electronics Control Module 1

J898

Windshield Projection Head Up Display Control Module

T2eqx

2-Pin Connector, Black

T2jo

2-Pin Connector, Black

T2ka

2-Pin Connector, Black

T2kb

2-Pin Connector, Black

T12l

12-Pin Connector, Gray

T32k

32-Pin Connector, Gray

TALU

Coupling Point on Left A-Pillar, Bottom

*

Refer to Applicable Wiring Diagram for Infotainment Most Bus

*2

Fiber Optic Cable
