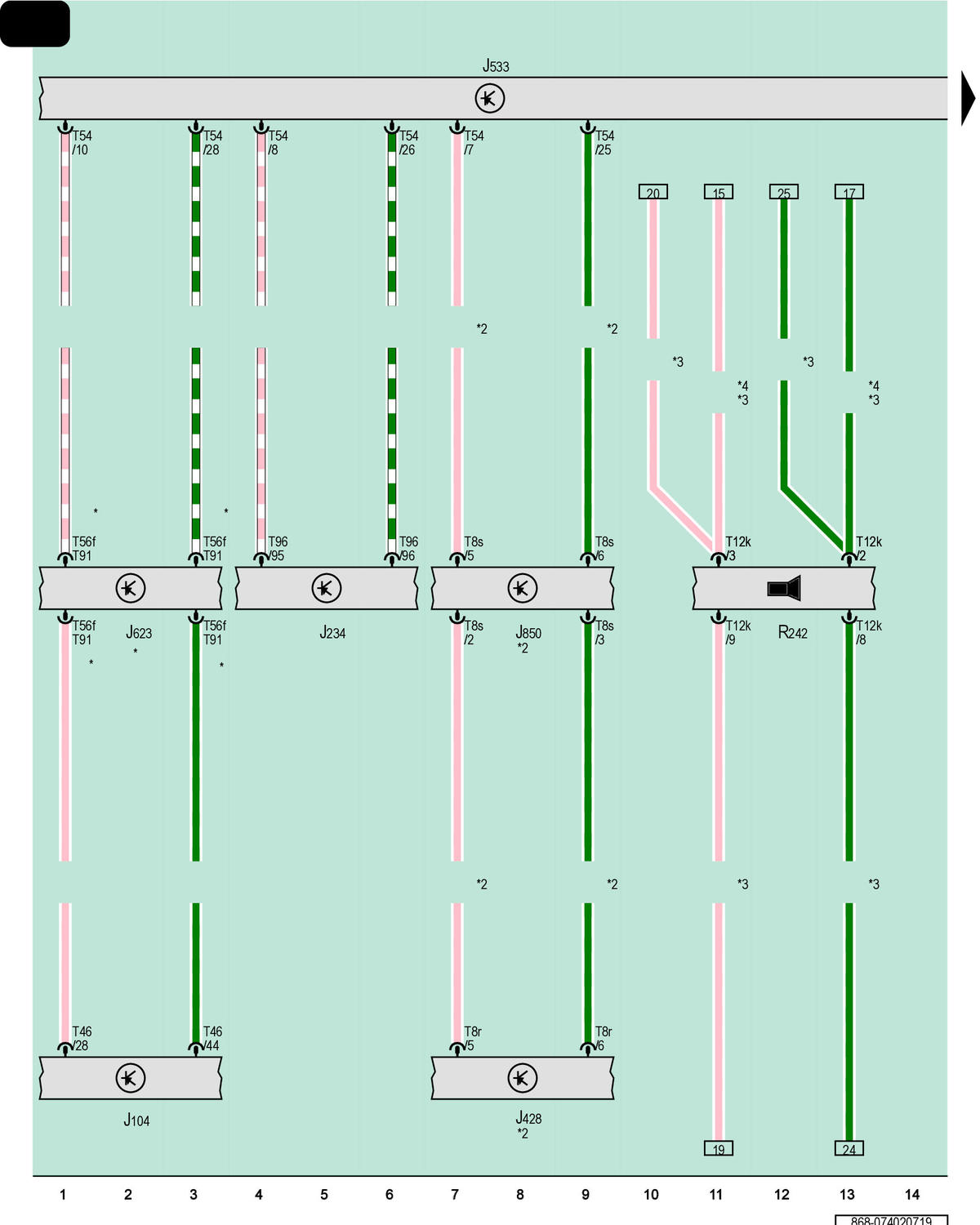

Abs Control Module, Airbag Control Module, Control Module For Adaptive Cruise Control, Data Bus On Board Diagnostic Interface, Engine/Motor Control Module, Control Module 2 For Adaptive Cruise Control, Driver Assistance Systems Front Camera

Courtesy of AUDI OF AMERICA, LLC

J104  ABS Control Module

J234  Airbag Control Module

J428  Control Module for Adaptive Cruise Control

J533  Data Bus on Board Diagnostic Interface

J623  Engine/Motor Control Module

J850  Control Module 2 for Adaptive Cruise Control

R242  Driver Assistance Systems Front Camera

T8r  8-Pin Connector, Black

T8s  8-Pin Connector, Black

T12k  12-Pin Connector, Black

T46  46-Pin Connector, Black

T54  54-Pin Connector, Black

T56f  56-Pin Connector, Black

T96  96-Pin Connector, Black

*  Refer to Applicable Engine Wiring Diagram

*2  For Vehicles with Adaptive Cruise Control (ACC)

*3  For Driver Assistance System

*4  For Vehicles with Electronic Damping
