ASR/Esp Button, Hill Descent Control Button, Control Unit 1 For Driving And Convenience Functions, Vehicle Electrical System Control Module

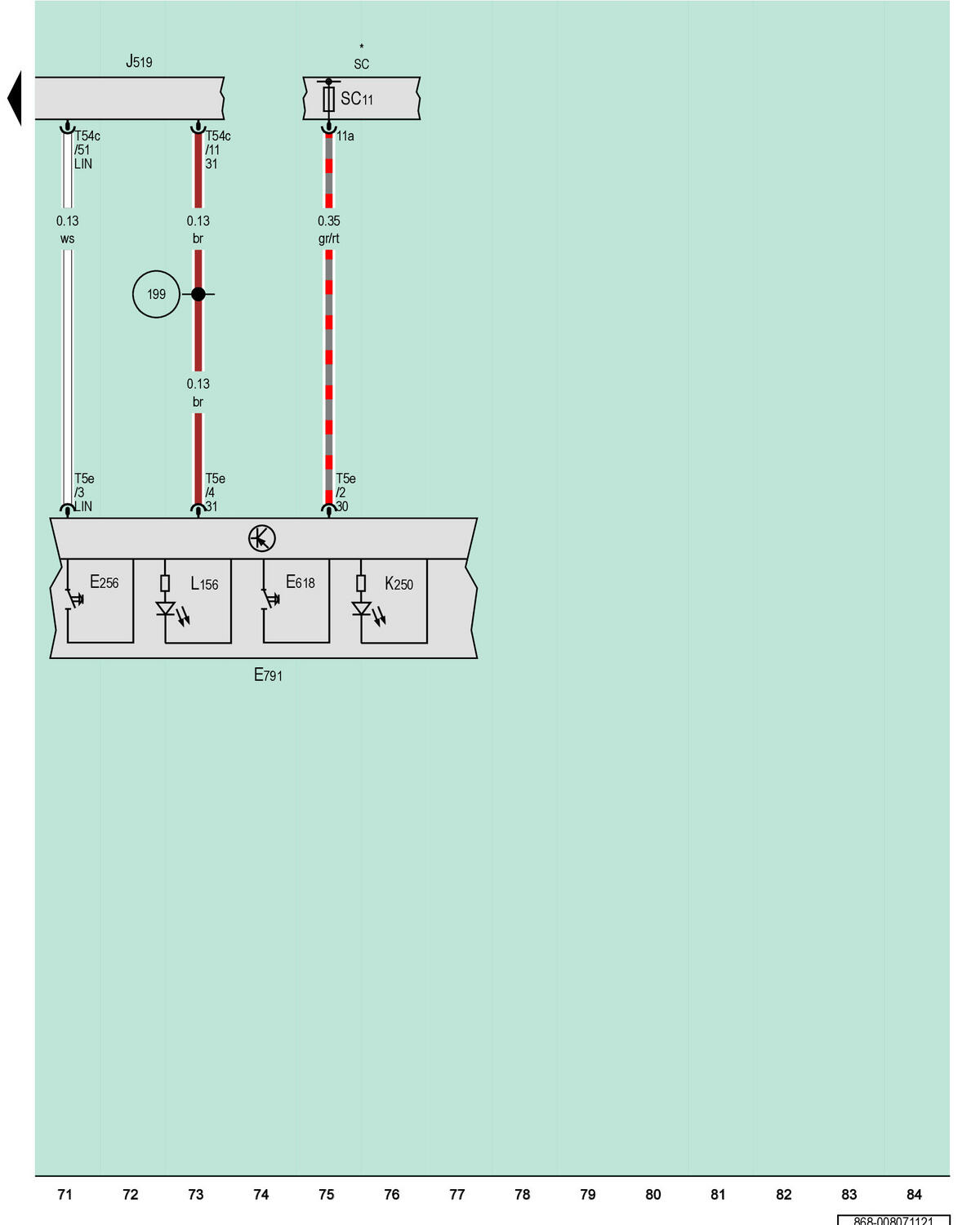

GWW868-008071121Courtesy of AUDI OF AMERICA, LLC

E256  ASR/ESP Button

E618  Hill Descent Control Button

E791  Control Unit 1 for Driving and Convenience Functions

J519  Vehicle Electrical System Control Module

K250  Hill Descent Control Indicator Lamp

L156  Switch Illumination Bulb

SC  Fuse Panel C

SC11  Fuse 11 (On Fuse Panel C)

T5e  5-Pin Connector, Brown

T54c  54-Pin Connector, Black

199  Ground Connection 3 (in Instrument Panel Wiring Harness)

*  Refer to Applicable Wiring Diagram for Fuse Positions
