Comfort System Central Control Module -J393-, REMOVING AND INSTALLING: Removing

• Remove the left luggage compartment trim panel. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .

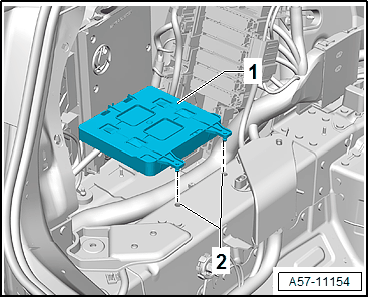

-- Loosen the bracket with the Comfort System Central Control Module -1- from the catches -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connectors -1, 2, 3, 4 and 6-.

Courtesy of AUDI OF AMERICA, LLC

-- Equipped on some models: disconnect the connector -5-.

-- Release the retainers -arrows- and guide the central control module -5- out of the mount.
