ABS Control Module -J104- /ABS Hydraulic Unit -N55-, REMOVING AND INSTALLING: Installing

Install in the reverse order of removal while noting the following:

• Only remove the plugs on the new hydraulic unit if the corresponding brake line is installed.
• If the plugs are removed too early from the hydraulic unit, brake fluid can escape and the unit may not be sufficiently filled or adequately bled.

-- Before assembling the holder for the ABS Hydraulic Unit -N55- in the bracket, coat the rubber bushings -3- with a Special Lubricant.

Courtesy of AUDI OF AMERICA, LLC

-- Make sure that the bracket -1- is seated correctly in the guide -arrow-. Tighten the bolt -4-.

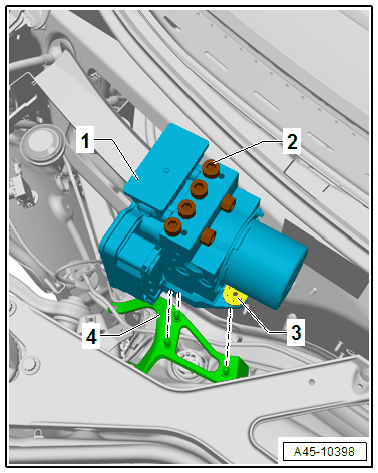

-- Press the ABS Hydraulic Unit -N55- -item 1- carefully on the pins on the bracket -4-.

Courtesy of AUDI OF AMERICA, LLC

• The hydraulic control module must rest in all pins.

-- Check the rubber bushing -3- and the ABS Hydraulic Unit -N55- -item 1- for the correct seating.

-- Insert the brake lines -1 and 2- into the ABS Hydraulic Unit -N55- and then install the union bolts by hand and tighten.

-- Connect the connector -3-.

-- After securing the brake lines to the hydraulic unit select the "Hydraulic connections, basic setting" program. Refer to DIAGNOSTIC ENTRIES .

-- Follow the instructions in the Vehicle Diagnostic Tester display.

-- Remove the Brake Pedal Actuator: VAG1869/2  .

-- Bleed the brake system. Refer to HYDRAULIC SYSTEM, BLEEDING .

-- Complete the "Control module, replacing" program after replacing the hydraulic control unit. Refer to Vehicle Diagnostic Tester.
