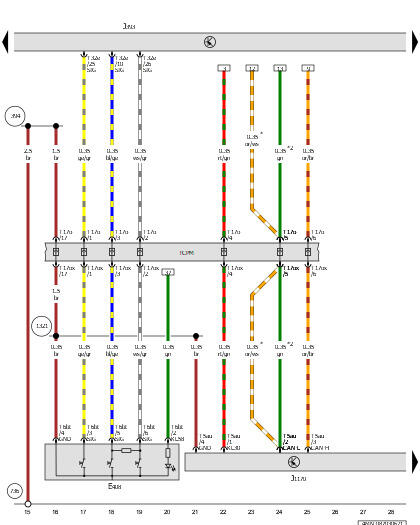

Access/Start Authorization Button, Comfort System Central Control Module, Near Field Communication Control Module 2
E408
Access/Start Authorization Button
J393
Comfort System Central Control Module
J1170
Near Field Communication Control Module 2
T5au
5-Pin Connector, Black
T6bt
6-Pin Connector, Black
T17o
17-Pin Connector, Black
T17ox
17-Pin Connector, Black
T32e
32-Pin Connector, Blue
TCPM
Coupling Point on Instrument Panel, Center
394
Ground Connection 29 (in Main Wiring Harness)
736
Ground Connection in Right Rear Footwell
1321
Ground Connection 2 (in Center Console Wiring Harness)
*
Omitted as a Running Change
*2
Running Change
