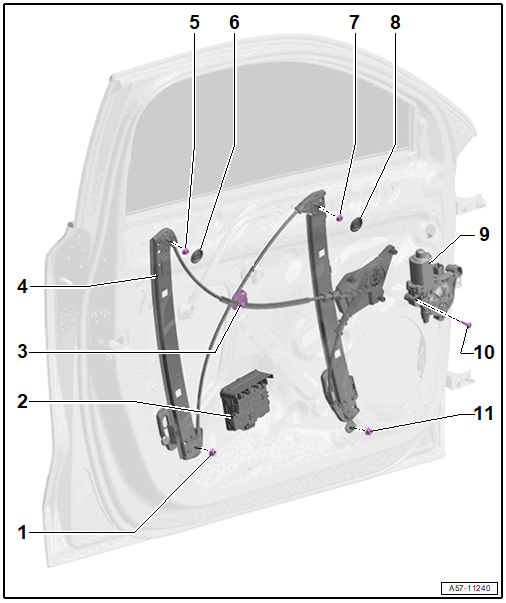

Overview - Window Regulator
- Nut
- Replace after removing
- 7.5 Nm
- Door Control Module
- Component Location Overview. Refer to COMPONENT LOCATION OVERVIEW - CENTRAL LOCKING .
- Clip
- Window Regulator
- Removing and installing. Refer to WINDOW REGULATOR, REMOVING AND INSTALLING .
- Nut
- Replace after removing
- 7.5 Nm
- Cap
- Nut
- Replace after removing
- 7.5 Nm
- Cap
- Window Regulator Motor
- Driver Window Regulator Motor -V147-, Front Passenger Window Regulator Motor -V148-
- Removing and installing. Refer to WINDOW REGULATOR MOTOR, REMOVING AND INSTALLING .
- Bolt
- Quantity: 3
- thread cutting
- Position and install by hand
- 3.5 Nm
- Nut
- Replace after removing
- 7.5 Nm
