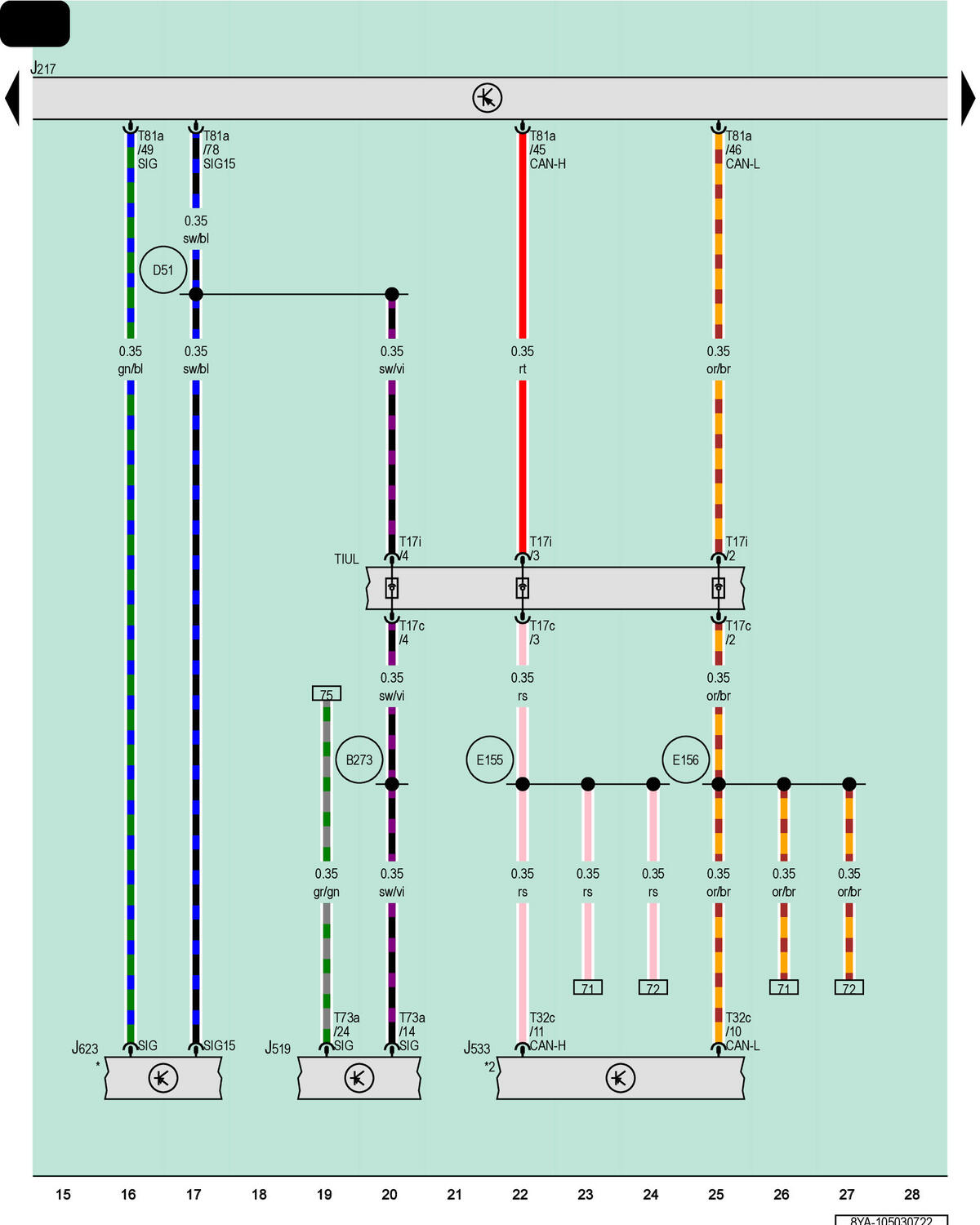

Transmission Control Module, Vehicle Electrical System Control Module, Data Bus On Board Diagnostic Interface, Engine/Motor Control Module

Courtesy of AUDI OF AMERICA, LLC

J217

Transmission Control Module

J519

Vehicle Electrical System Control Module

J533

Data Bus on Board Diagnostic Interface

J623

Engine/Motor Control Module

T17c

17-Pin Connector, Brown

T17i

17-Pin Connector, Brown

T32c

32-Pin Connector, Black

T73a

73-Pin Connector, Black

T81a

81-Pin Connector, Black

TIUL

Coupling Point in Interior, Bottom Left

B273

Positive Connection (15) (in Main Wiring Harness)

D51

Positive Connection 1 (15) (in Engine/Motor Compartment Wiring Harness)

E155

Connection 1 (CAN Bus Automatic Transmission Control Module, High)

E156

Connection 1 (CAN Bus Automatic Transmission Control Module, Low)

*

Refer to Applicable Engine Wiring Diagram

*2

Refer to the Applicable Transmission CAN Bus Network Data Bus Wiring Diagram
