Rear Transmission Mount, Removing And Installing, Version 1

WARNING: This page is about a different car, the 2024 Audi A5 Sportback and 2023 Audi A5 Sportback. However, it is still accessible from the selected car via links, so may be relevant.

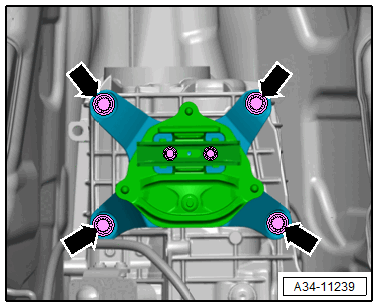

Transmission Support, Removing with Transmission Mount

Courtesy of AUDI OF AMERICA, LLC

-- Remove the tunnel crossmember. Refer to TUNNEL CROSSMEMBER, REMOVING AND INSTALLING .

-- Remove the bolts -arrows- and remove the transmission support with the transmission mount from the transmission.

Transmission Mount, Removing

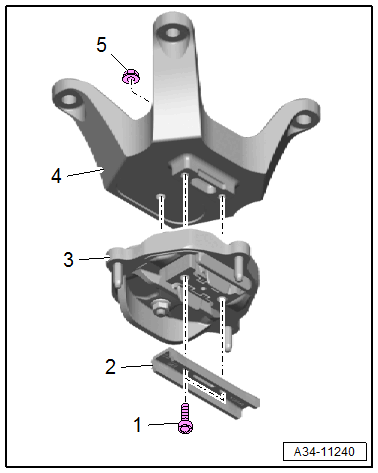

Fig 1: Exploded View Of Transmission Mount

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -1- and remove the stop -2- for the transmission mount.

-- Remove the nut -5- and remove the transmission mount -3- from the transmission support -4-.

Installing

-- Tighten the nut -5- hand-tight.

-- Tighten the bolts -1- and then the nut -5-.

Further installation is performed in reverse order of the removal.

Tightening Specifications

Refer to OVERVIEW - ASSEMBLY MOUNTS - 7-Speed Dual Clutch Transmission .
