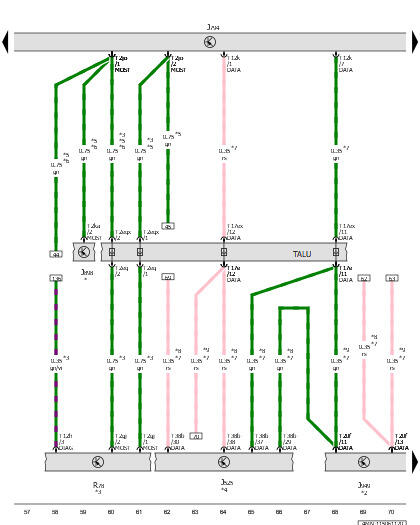

Digital Sound System Control Module, Information Electronics Control Module 1, Windshield Projection Head Up Display Control Module, Control Module For Emergency Call Module And Communication Unit, TV Tuner
J525
Digital Sound System Control Module
J794
Information Electronics Control Module 1
J898
Windshield Projection Head Up Display Control Module
J949
Control Module for Emergency Call Module and Communication Unit
R78
TV Tuner
T2eq
2-Pin Connector, Black
T2eqx
2-Pin Connector, Black
T2gj
2-Pin Connector, Black
T2jo
2-Pin Connector, Black
T2ka
2-Pin Connector, Black
T12h
12-Pin Connector, Black
T12k
12-Pin Connector, Green
T17e
17-Pin Connector, Blue
T17ex
17-Pin Connector, Blue
T20f
20-Pin Connector, Naturally Cloudy
T38b
38-Pin Connector, Black
TALU
Coupling Point on Left A-Pillar, Bottom
*
Refer to Applicable Windshield Projection Wiring Diagram
*2
Refer to Applicable Communication Wiring Diagram
*3
For Vehicles with TV Tuner
*4
Refer to Applicable Sound System Wiring Diagram
*5
Refer to Applicable Wiring Diagram for Infotainment Most Bus
*6
Depending on Equipment
*7
Audio Bus Data Bus Wire
*8
For Vehicles with an Amplifier
*9
For Vehicles Without an Amplifier
