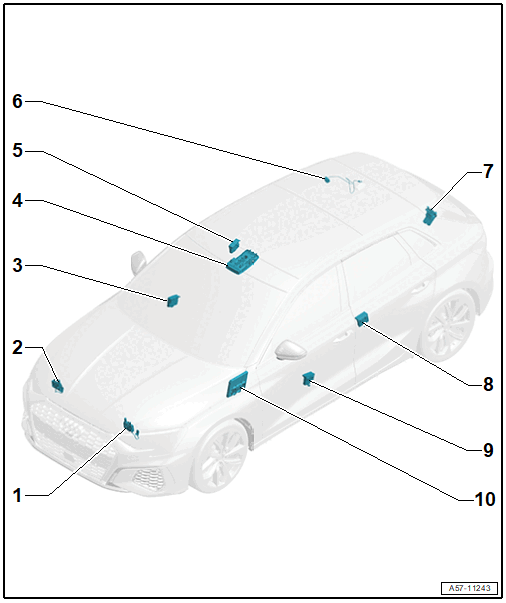

Component Location Overview - Central Locking
- Hood Latch
- Hood
- Left
- With integrated Engine Hood Contact Switch -F266-, cannot be replace separately
- Removing and installing. Refer to HOOD LATCH, REMOVING AND INSTALLING .
- Hood Latch
- Hood
- Right
- With integrated Hood Contact Switch 2 -F329-, cannot be replace separately
- Removing and installing. Refer to HOOD LATCH, REMOVING AND INSTALLING .
- Front Passenger Door Control Module -J387-
- Removing and installing. Refer to Driver Door Control Module -J386- AND Front Passenger Door Control Module -J387-, REMOVING AND INSTALLING .
- Anti-Theft Alarm System Sensor -G578-
- Overview. Refer to OVERVIEW - INTERIOR MONITORING .
- Passenger Side Rear Door Control Module -J927-
- Removing and installing. Refer to Left Rear Door Control Module -J388- AND Right Rear Door Control Module -J389-, REMOVING AND INSTALLING .
- Fuel Filler Door Lock Motor -V155-
- Removing and installing. Refer to Fuel Filler Door Lock Motor -V155-, REMOVING AND INSTALLING .
- Rear Lid Lock Unit -VX25-
- With integrated Rear Lid Central Locking System Motor -V53-, Rear Lid Alarm Switch -F123-, Rear Lid Lock Cylinder/Anti-Theft Alarm/Central Locking Contact Switch -F124-, cannot be replaced separately
- Overview. Refer to OVERVIEW - REAR LID .
- Driver Side Rear Door Control Module -J926-
- Removing and installing. Refer to Left Rear Door Control Module -J388- AND Right Rear Door Control Module -J389-, REMOVING AND INSTALLING .
- Driver Door Control Module -J386-
- Removing and installing. Refer to Driver Door Control Module -J386- AND Front Passenger Door Control Module -J387-, REMOVING AND INSTALLING .
- Vehicle Electrical System Control Module -J519-
- Component Location Overview. Refer to COMPONENT LOCATION OVERVIEW - CONTROL MODULES .
