Brake Booster -NX6- / Brake System Pressure Reservoir -VX70- Component Location And Connector End View: Notes

Component Location

In plenum chamber, left.

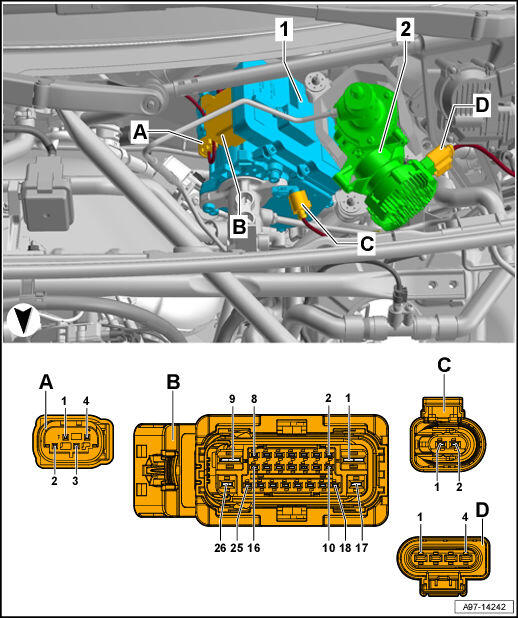

Fig 1: Brake Booster -NX6- / Brake System Pressure Reservoir -VX70- Component Location And Connector End View

Courtesy of AUDI OF AMERICA, LLC

1. 1 -  Brake booster -NX6-
2. 2 -  Brake system pressure reservoir -VX70-
3. A -  4-Pin Connector -T4lp-, black
4. B -  26-Pin Connector -T26h-, black
5. C -  2-Pin Connector -T2se-, black
6. D -  4-Pin Connector -T4lq-, black
