Control Modules On Front Headlamp -MX1- / -MX2- (8G0, 8G1, 8G4), Through June 2020: Notes

Component Location

At front of vehicle.

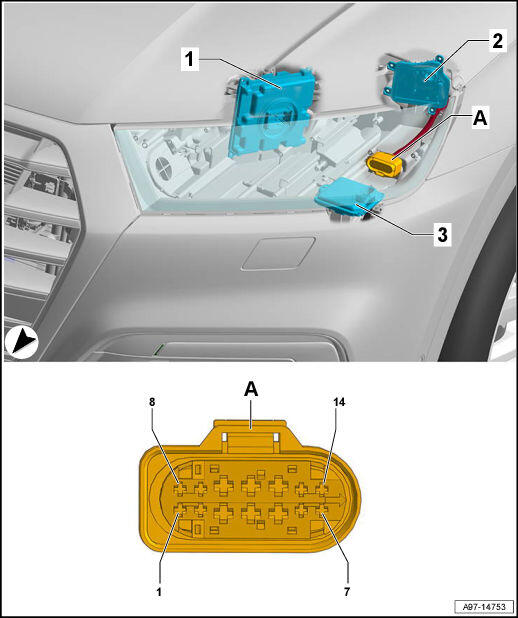

Fig 1: Control Modules On Front Headlamp -MX1- / -MX2- Component Location And Connector End View (8G0, 8G1, 8G4), Through June 2020

Courtesy of AUDI OF AMERICA, LLC

1. 1 -  Left LED Headlamp Power Output Stage 1 -A31- / Right LED Headlamp Power Output Stage 1 -A27-
2. 2 -  Left LED Parking Lamp/DRL Module -L176- / Right LED Parking Lamp/DRL Module -L177-
3. 3 -  Left light control module -J1018- / Right light control module -J1023-
4. A -  14-Pin Connector -T14l- / -T14r-, black
   • Left Headlamp: -T14l-
   • Right Headlamp: -T14r-
