Control Modules On Front Headlamp -MX1- / -MX2- (8IT, 8IY), From June 2020: Notes

Component Location

At front of vehicle.

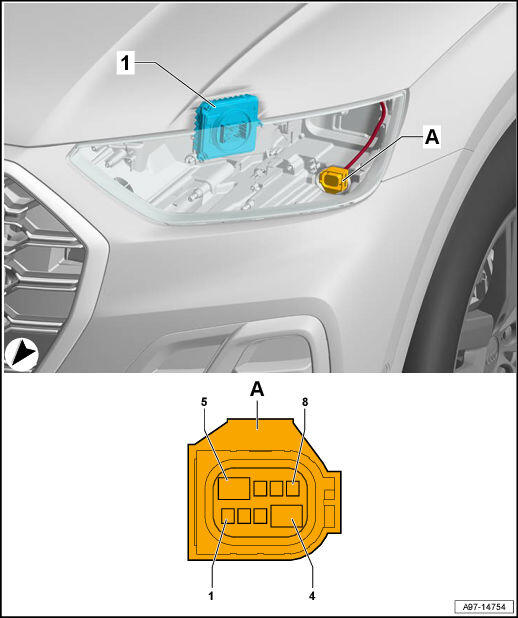

Fig 1: Control Modules On Front Headlamp -MX1- / -MX2- Component Location And Connector End View (8IT, 8IY), From June 2020

Courtesy of AUDI OF AMERICA, LLC

1. 1 -  Left LED Headlamp Power Output Stage 1 -A31- / Right LED Headlamp Power Output Stage 1 -A27-
2. A -  8-Pin Connector -T8bmy- / -T8bmz-
   • Left Headlamp: -T8bmy-
   • Right Headlamp: -T8bmz-
