Data Bus On Board Diagnostic Interface -J533-, WITH EMERGENCY CALL FUNCTION (IW1, IW3) AND CONNECT PLUS (IV0), THROUGH JUNE 2020: Notes

Component Location

Near rear seat bench.

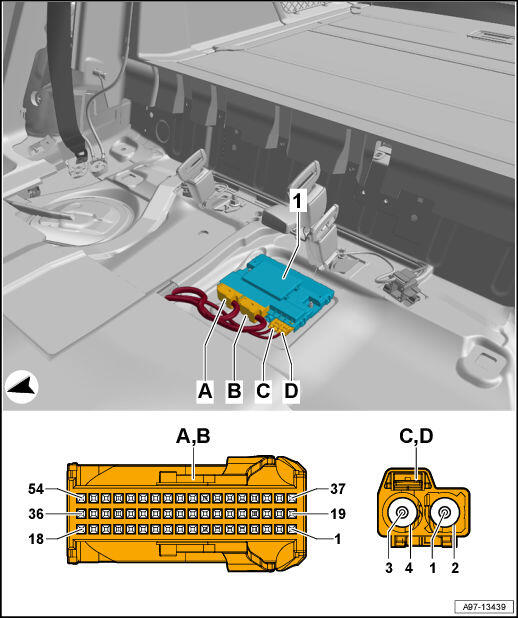

Fig 1: Data Bus On Board Diagnostic Interface -J533-, With Emergency Call Function (IW1, IW3) And Connect Plus (IV0), Through June 2020 Component Location And Connector End View

Courtesy of AUDI OF AMERICA, LLC

1. 1 -  Data Bus On Board Diagnostic Interface -J533-
2. A -  54-Pin Connector -T54-, black
3. B -  54-Pin Connector -T54b-, blue
4. C -  4-Pin Connector -T4da-, pink
5. D -  4-Pin Connector -T4ee-, purple
