Data Bus On Board Diagnostic Interface -J533-, WITHOUT EMERGENCY CALL FUNCTION (IW0), THROUGH JUNE 2020: Notes

Component Location

Near rear seat bench.

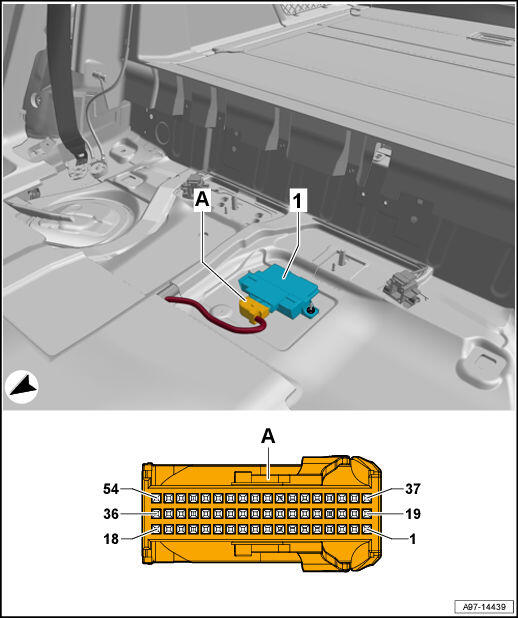

Fig 1: Data Bus On Board Diagnostic Interface -J533-, Without Emergency Call Function (IW0), Through June 2020 Component Location And Connector End View

Courtesy of AUDI OF AMERICA, LLC

1. 1 -  Data Bus On Board Diagnostic Interface -J533-
2. A -  54-Pin Connector -T54-, black
