Battery Modules For Hybrid Battery Unit -Ax1- Component Location And Connector End View

Component Location

In the Hybrid Battery Unit -AX1-.

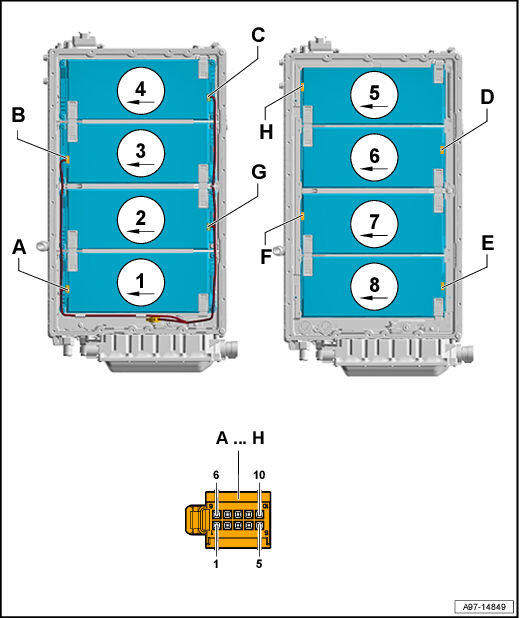

Fig 1: Battery Modules For Hybrid Battery Unit -AX1- Component Location And Connector End View

Courtesy of AUDI OF AMERICA, LLC

1. 1 -  Battery module 1 -J991-
2. 2 -  Battery module 2 -J992-
3. 3 -  Battery module 3 -J993-
4. 4 -  Battery module 4 -J994-
5. 5 -  Battery module 5 -J995-
6. 6 -  Battery module 6 -J996-
7. 7 -  Battery module 7 -J997-
8. 8 -  Battery module 8 -J998-
9. A -  10-Pin Connector -T10bn-
10. B -  10-Pin Connector -T10bp-
11. C -  10-Pin Connector -T10bq-
12. D -  10-Pin Connector -T10bs-
13. E -  10-Pin Connector -T10bu-
14. F -  10-Pin Connector -T10bt-
15. G -  10-Pin Connector -T10bo-
16. H -  10-Pin Connector -T10br-
