Battery, 48 V -A6-, For Vehicles With 48 V Hybrid System Component Location And Connector End View: Notes

Component Location

In luggage compartment.

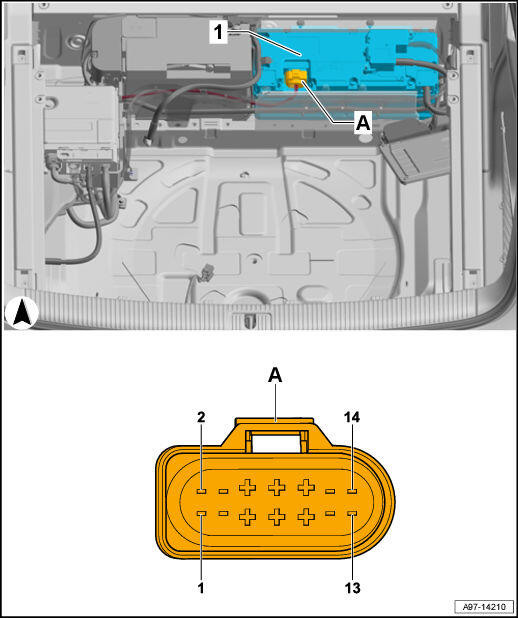

Fig 1: Battery, 48 V -A6-, For Vehicles With 48 V Hybrid System Component Location And Connector End View
GWWA97-14210Courtesy of AUDI OF AMERICA, LLC
  1. 1 -  Battery, 48 V -A6-
  2. A -  14-Pin Connector -T14i-, black
