Garage Door Opener Control Module -J530- Component Location And Connector End View: Notes

Component Location

Behind left rear bumper trim, centre.

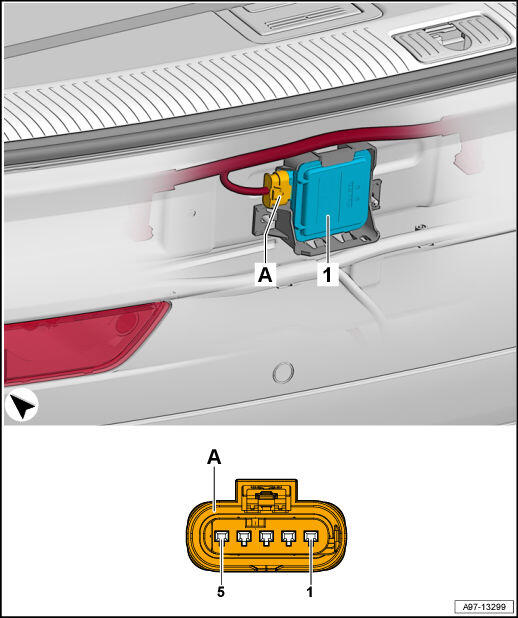

Fig 1: Garage Door Opener Control Module -J530- Component Location And Connector End View
GWWA97-13299Courtesy of AUDI OF AMERICA, LLC
  1. 1 -  Garage Door Opener Control Module -J530-
  2. A -  5-Pin Connector -T5ao-, black
