Special Purpose Vehicle Control Module -J608- Component Location And Connector End View

Component Location

In right luggage compartment, behind side panel trim.

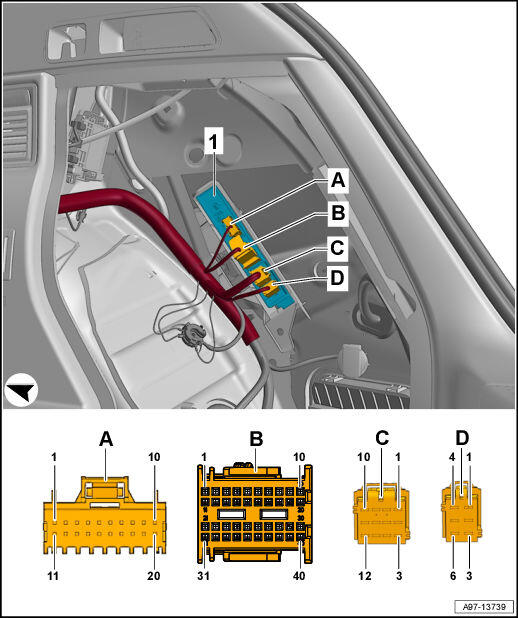

Fig 1: Special Purpose Vehicle Control Module -J608- Component Location And Connector End View

Courtesy of AUDI OF AMERICA, LLC

1. 1 -  Special Purpose Vehicle Control Module -J608-
2. A -  20-Pin Connector -T20k-, black
3. B -  40-Pin Connector -T40-, black
4. C -  12-Pin Connector -T12s-, green
5. D -  6-Pin Connector -T6db-, blue
