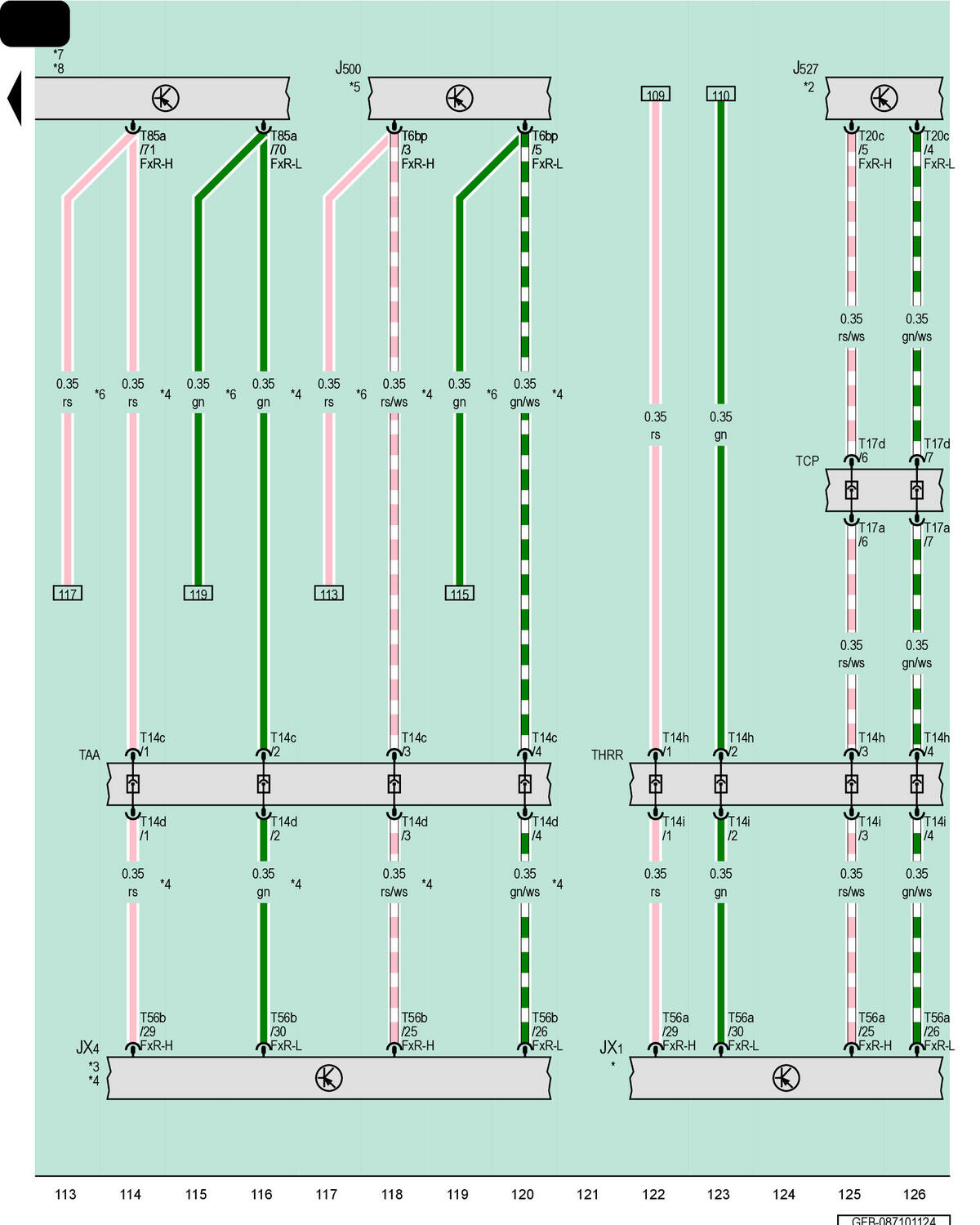

Electric Drive Power And Control Electronics, Electric Drive Power And Control Electronics 2, Steering Column Electronics Control Module, Control Module For Drive And Suspension Functions
JX1
Electric Drive Power and Control Electronics
JX4
Electric Drive Power and Control Electronics 2
J500
Power Steering Control Module
J527
Steering Column Electronics Control Module
J1312
Control Module for Drive and Suspension Functions
T6bp
6-Pin Connector, Brown
T14c
14-Pin Connector, Black
T14d
14-Pin Connector, Black
T14h
14-Pin Connector, Gray
T14i
14-Pin Connector, Gray
T17a
17-Pin Connector, Blue
T17d
17-Pin Connector, Blue
T20c
20-Pin Connector, Black
T56a
56-Pin Connector, Black
T56b
56-Pin Connector, Black
T85a
85-Pin Connector, Black
TAA
All-Wheel Drive Coupling Point
TCP
Coupling Point on Instrument Panel
THRR
Coupling Point in Luggage Compartment, Right
*
Refer to Applicable Rear Axle Electric Drive System Wiring Diagram
*2
Refer to Applicable Steering Column Electronics Wiring Diagram
*3
Refer to Applicable Front Axle Electric Drive System Wiring Diagram
*4
For AWD Vehicles
*5
Refer to the Applicable Steering Wiring Diagram
*6
For Vehicles Without All-Wheel Drive
*7
Refer to Applicable Electric Drive System, Engine/Motor Control Module Wiring Diagram
*8
Refer to the Applicable Adaptive Chassis DCC Wiring Diagram
