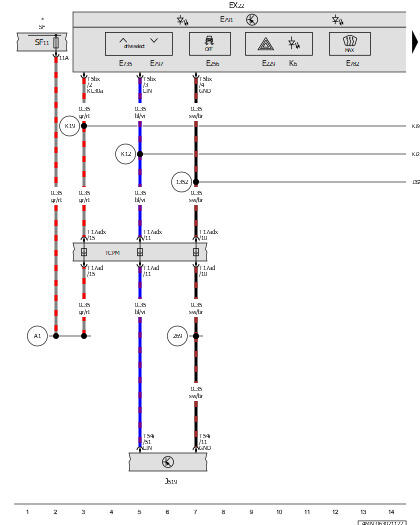

Center Instrument Panel Switch Module, Control Unit 1 For Driving And Convenience Functions, Vehicle Electrical System Control Module
EX22
Center Instrument Panel Switch Module
E229
Emergency Flasher Button
E256
ASR/ESP Button
E735
Driving Profile Selection Button
E782
Defrost Button
E791
Control Unit 1 for Driving and Convenience Functions
E797
Driving Profile Selection Button 2
J519
Vehicle Electrical System Control Module
K6
Emergency Flasher Indicator Lamp
SF
Fuse Panel F
SF11
Fuse 11 (On Fuse Panel F)
T5bx
5-Pin Connector, Brown
T17ad
17-Pin Connector, Black
T17adx
17-Pin Connector, Black
T54i
54-Pin Connector, Black
TCPM
Coupling Point on Instrument Panel, Center
269
Sensor Ground Connection 1 (in Instrument Panel Wiring Harness)
1352
Ground Connection 5 (in Center Console Wiring Harness)
A1
Positive Connection 30a (in Instrument Panel Wiring Harness)
K12
LIN Bus Connection (in Center Console Wiring Harness)
K19
Connection 2 (30) (in Center Console Wiring Harness)
*
Refer to Applicable Wiring Diagram for Fuse Positions
