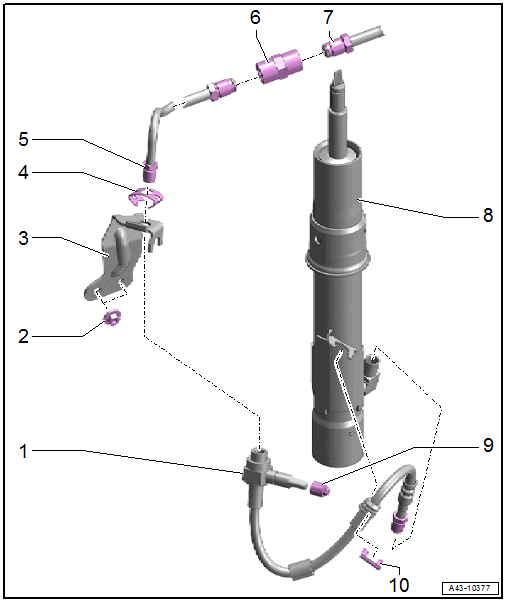

Overview - Front Shock Absorbers
WARNING: This page is about a different car, the 2025 Audi S5 Sportback, 2025 Audi RS 5 Sportback, and 2025 Audi A5 Sportback. However, it is still accessible from the selected car via links, so may be relevant.
- Hose/Line Assembly
- With extract/fill valve
- Union bolt, 14 Nm
- Nut
- 9 Nm
- Bracket
- Spring
- Replace if damaged
- Hydraulic Line
- Union bolt, 14 Nm
- Connecting Piece
- Hydraulic Line
- Union bolt, 14 Nm
- DRC Shock Absorber
- Removing and Installing. Refer to SUSPENSION STRUT, REMOVING AND INSTALLING .
- Protective Dust Cap
- 1.5 Nm
- Spring
- Replace if damaged
