Automatic Glow Time Control Module -J179-, FOR VEHICLES WITH ENGINE CODE CZHA, DESA, DETA, DETB, DEUA, DEUB, DEUC, DFVA, CRTC, CSWB, DCPC, DCPE: Notes

Component Location

In center plenum chamber.

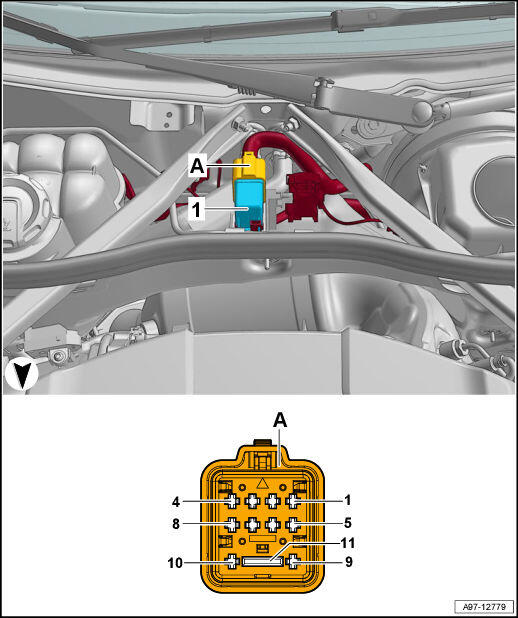

Fig 1: Automatic Glow Time Control Module -J179- Component Location And Connector End View (DFVA, CZHA, DESA, DETA, DETB, DEUA, DEUB, DEUC, CRTC, CSWB, DCPC, DCPE)

Courtesy of AUDI OF AMERICA, LLC

• 1 -  Automatic Glow Time Control Module -J179-
• A -  11-Pin Connector -T11a-, black
