Control Modules On Front Headlamp -MX1- / -MX2- (8EX, 8IT, 8IY), From July 2019

Component Location

At front of vehicle.

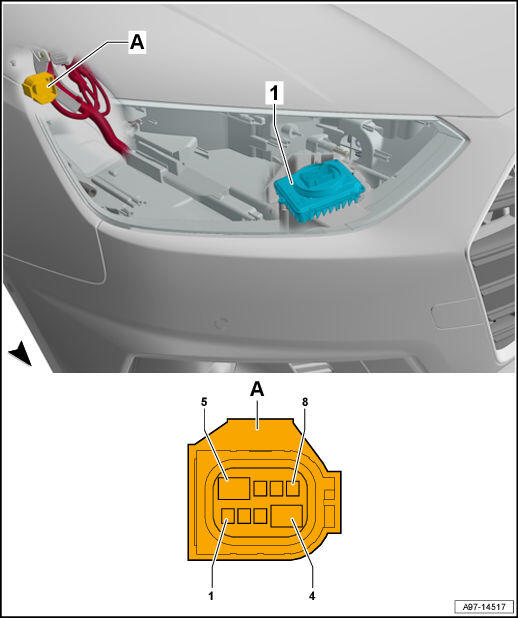

Fig 1: Front Headlamp Control Modules -MX1- / -MX2- (8EX, 8IT, 8IY) Component Location And Connector End View (from July 2019)

Courtesy of AUDI OF AMERICA, LLC

• 1 -  Left LED Headlamp Power Output Stage 1 -A31- / Right LED Headlamp Power Output Stage 1 -A27-
• A -  8-Pin Connector -T8bmy- / -T8bmz-
  • Left Headlamp: -T8bmy-
  • Right Headlamp: -T8bmz-
