Battery, 48 V -A6- COMPONENT LOCATION AND CONNECTOR END VIEW: Notes

Component Location

In luggage compartment.

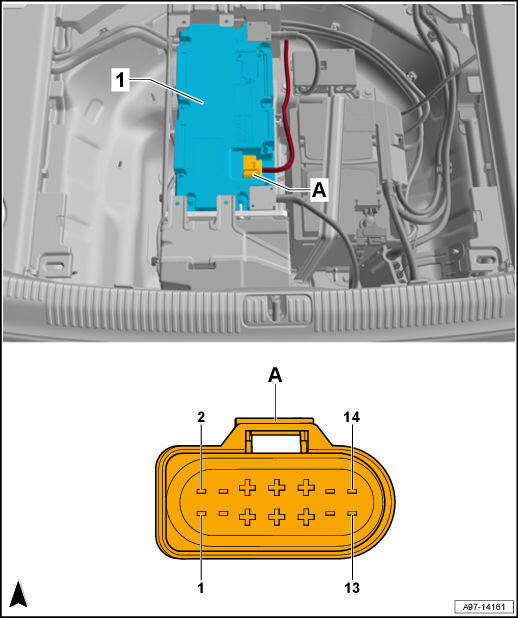

Fig 1: Battery, 48 V -A6- Component Location And Connector End View

Courtesy of AUDI OF AMERICA, LLC

• 1 -  Battery, 48 V -A6-
• A -  14-Pin Connector -T14i-, black
