Control module for emergency call module and communication unit -J949-, FROM DECEMBER 2021, ONLY FOR CHINA, WITH EXTERNAL VEHICLE COMMUNICATION (GW2): Notes
Component Location
In luggage compartment.

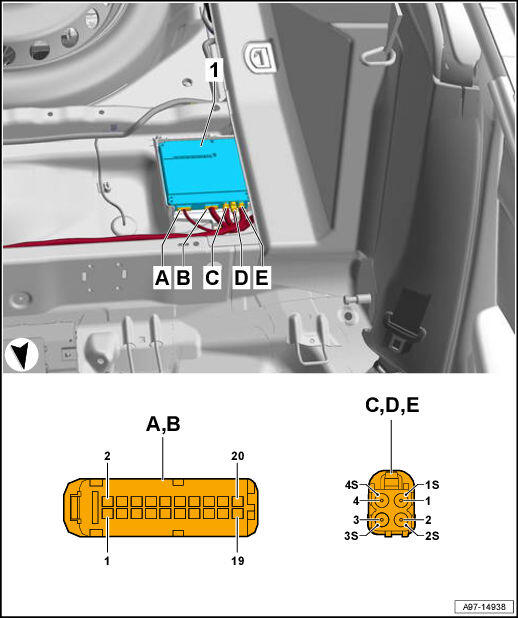

Fig 1: Control Module For Emergency Call Module And Communication Unit -J949- Component Location And Connector End View (From December 2021, Only For China, With External Vehicle Communication (GW2))
- A - 20-Pin Connector -T20ad-, black
- B - 20-Pin Connector -T20aj-, naturally cloudy
- C - 8-Pin Connector -T8bv-, blue
- D - 8-Pin Connector -T8bw-, black
- E - 8-Pin Connector -T8by-, white
