Control module for emergency call module and communication unit -J949-, FROM JULY 2019: Notes

Component Location

In luggage compartment.

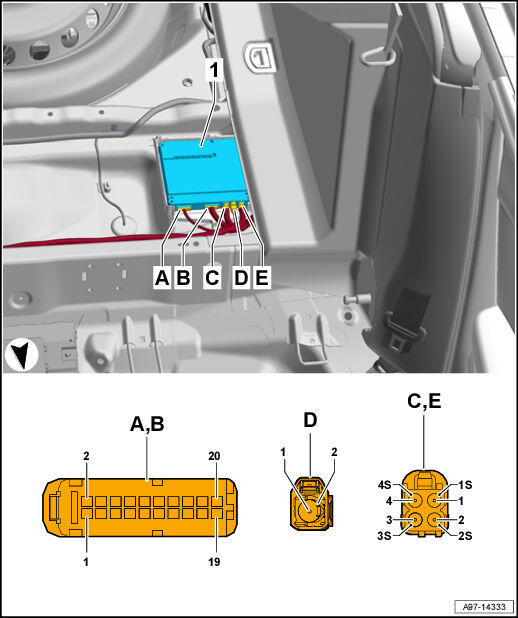

Fig 1: Control Module For Emergency Call Module And Communication Unit -J949- Component Location And Connector End View (From July 2019)

Courtesy of AUDI OF AMERICA, LLC

• 1 -  Control module for emergency call module and communication unit -J949-
• A -  20-Pin Connector -T20ad-, black
• B -  20-Pin Connector -T20aj-, naturally cloudy
• C -  8-Pin Connector -T8cm-, white
• D -  2-Pin Connector -T2jb-, pink
• E -  8-Pin Connector -T8cp-, black
