Digital Sound System Control Module -J525-, PREMIUM-SOUND COMPONENT LOCATION AND CONNECTOR END VIEW: Notes

Component Location

In rear left in luggage compartment.

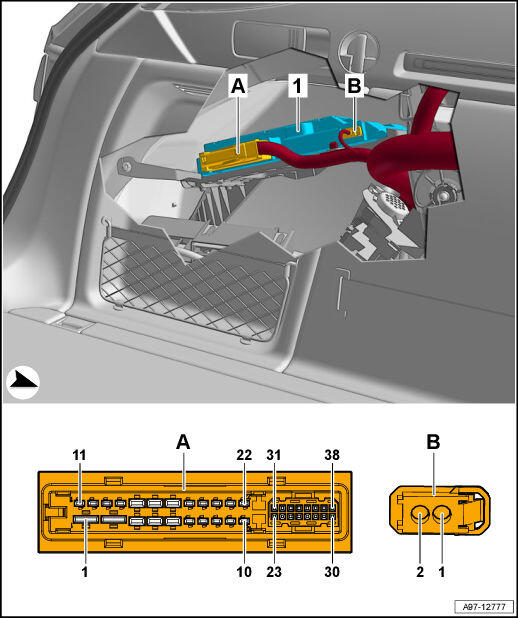

Fig 1: Digital Sound System Control Module -J525-, Premium-Sound Component Location And Connector End View

Courtesy of AUDI OF AMERICA, LLC

• 1 -  Digital Sound System Control Module -J525-
• A -  38-Pin Connector -T38-, black
  • Through June 2019
• A -  38-Pin Connector -T38a-, black
  • From July 2019
• B -  2-Pin Connector -T2vb-, black
  • MOST Bus
  • Through June 2019
