Engine Sound Generator Control Module -J943- COMPONENT LOCATION AND CONNECTOR END VIEW: Notes

Component Location

In left luggage compartment, behind luggage compartment side panel trim.

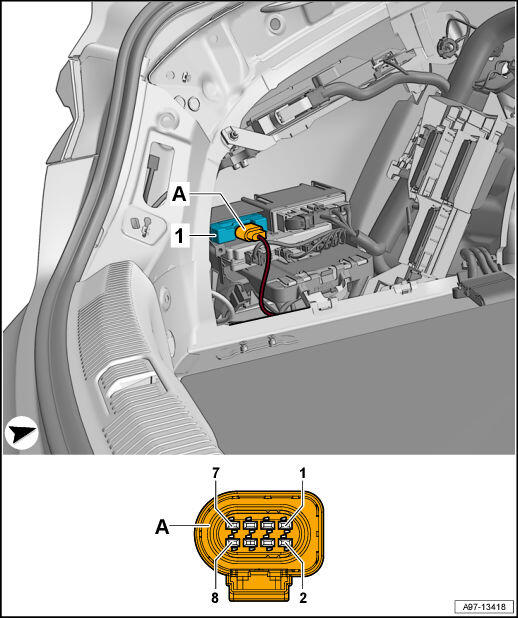

Fig 1: Engine Sound Generator Control Module -J943- Component Location And Connector End View

Courtesy of AUDI OF AMERICA, LLC

• 1 -  Engine Sound Generator Control Module -J943-
• A -  8-Pin Connector -T8ba-, black
