Peripheral Camera Control Module -J928- COMPONENT LOCATION AND CONNECTOR END VIEW: Notes

Component Location

In left luggage compartment, behind luggage compartment side panel trim.

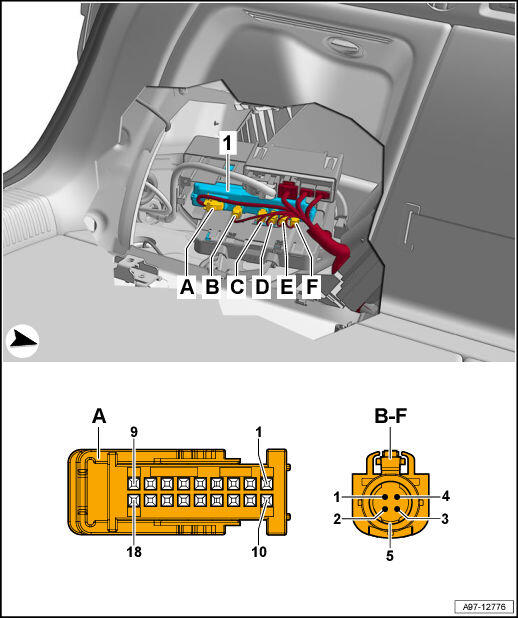

Fig 1: Peripheral Camera Control Module -J928- Component Location And Connector End View

Courtesy of AUDI OF AMERICA, LLC

• 1 -  Peripheral Camera Control Module -J928-
• A -  18-Pin Connector -T18a-, black
• B -  5-Pin Connector -T5o-, brown
  • to Control Module for Information Electronics 1 -J794-
• C -  5-Pin Connector -T5i-, green
  • to left Peripheral Camera -R244-
• D -  5-Pin Connector -T5k-, black
  • to right Peripheral Camera -R245-
• E -  5-Pin Connector -T5m-, white
  • to Front Peripheral Camera -R243-
• F -  5-Pin Connector -T5n-, blue
  • to Rear Peripheral Camera -R246-
