Reducing Agent Metering System Control Module -J880- COMPONENT LOCATION AND CONNECTOR END VIEW: Notes

Component Location

On reducing agent tank.

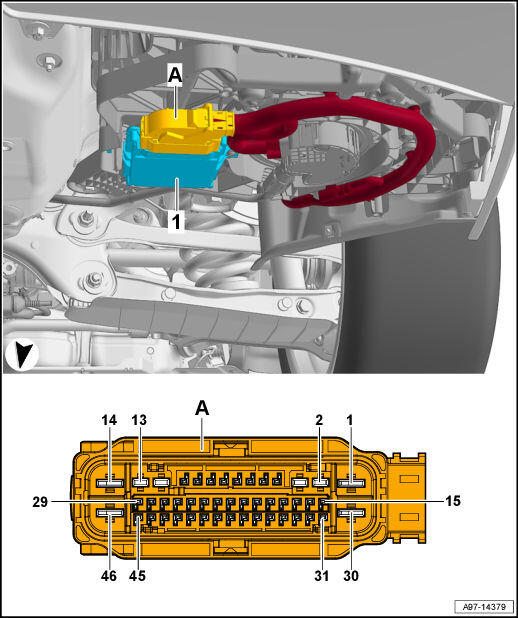

Fig 1: Reducing Agent Metering System Control Module -J880- Component Location And Connector End View
GWWA97-14379Courtesy of AUDI OF AMERICA, LLC
