Engine Pre-Wiring Coupling Point 1, Adapter Cable -TMOAD1-

• for vehicles with manual transmission

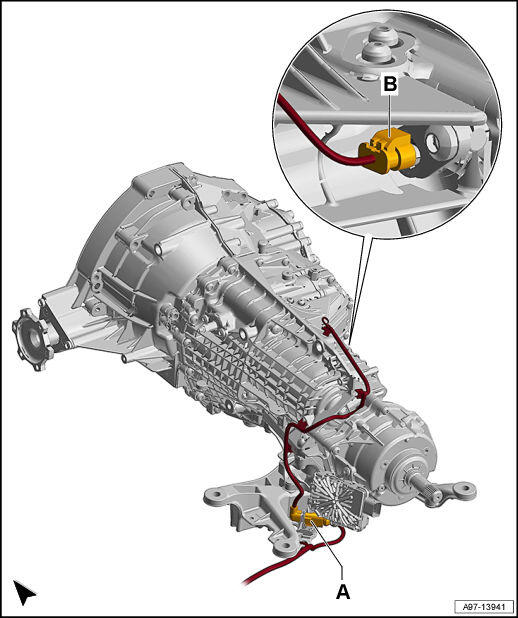

Fig 1: Identifying Engine Pre-Wiring Adapter Cable -TMOAD1- Coupling Points

Courtesy of AUDI OF AMERICA, LLC

• A -  Engine Pre-Wiring Coupling Point 1, Adapter Cable -TMOAD1-, with 3-Pin Connector -T3gf-, black / 3-Pin Connector -T3gfx-, black
• B -  Gear Recognition Sensor -G604-, with 3-Pin Connector -T3ge-, black, brown
