Control Module for Information Electronics 1 -J794-, MMI (INFORMATION ELECTRONICS 1), FROM JULY 2019

Component Location

In glove compartment

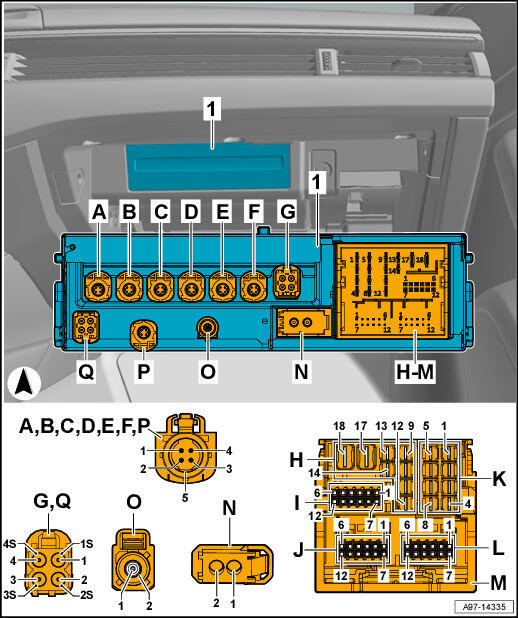

Fig 1: Control Module For Information Electronics 1 -J794- Component Location And Connector End View (MMI (Information Electronics 1), From July 2019)

Courtesy of AUDI OF AMERICA, LLC

• 1 -  Control Module for Information Electronics 1 -J794-
• A -  5-Pin Connector -T5ee-, yellow
  • USB connection 3
• B -  5-Pin Connector -T5ea-, brown
  • USB connection 1 and 2
• C -  5-Pin Connector -T5dz-, black
  • Display connection
• D -  5-Pin Connector -T5gu-, white
  • Instrument cluster control module connection
• E -  Not used
• F -  5-Pin Connector -T5gz-, green
  • Peripheral camera connection
• G -  Not used
• H -  8-Pin Connector -T8bu-, black
• I -  12-Pin Connector -T12ac-, gray
• J -  12-Pin Connector -T12ab-, green
• K -  8-Pin Connector -T8bt-, brown
• L -  12-Pin Connector -T12aa-, blue
• M -  Connection block
• N -  2-Pin Connector -T2sy-, black
  • Optical data bus (MOST bus) connection
• O -  2-Pin Connector -T2tw-, green
  • Rearview camera connection
• P -  5-Pin Connector -T5ec-, blue
  • Chip card reader connection
• Q -  8-Pin Connector -T8bo-, black
  • Applicable to US/CDN
  • Radio Antenna Connection
• Q -  8-Pin Connector -T8bn-, blue
  • Not applicable to US/CDN
  • Radio Antenna Connection
