Control Module for Information Electronics 1 -J794-, MMI NAVIGATION PLUS, (I8H), THROUGH JUNE 2019

Component Location

In glove compartment

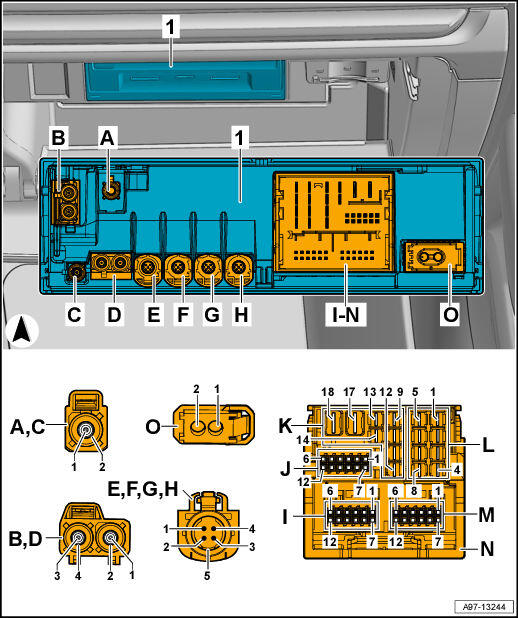

Fig 1: Control Module For Information Electronics 1 -J794- Component Location And Connector End View (MMI Navigation Plus, (I8H), Through June 2019)

Courtesy of AUDI OF AMERICA, LLC

• 1 -  Control Module for Information Electronics 1 -J794-
• A -  2-Pin Connector -T2dna-, black
  • Digital radio antenna connector
• A -  2-Pin Connector -T2dnb-, brown
  • Satellite antenna connection
• B -  4-Pin Connector -T4fc-, purple
  • GSM/LTE antennas connection
• C -  2-Pin Connector -T2zia-, blue
  • GPS antenna connector
• D -  4-Pin Connector -T4aw-, white
  • Radio Antenna Connection
• E -  5-Pin Connector -T5q-, brown
  • Peripheral camera connection
• F -  4-Pin Connector -T4ef-, yellow
  • Instrument cluster control module connection
• G -  4-Pin Connector -T4fa-, yellow
  • USB connection
• H -  4-Pin Connector -T4be-, gray, blue
  • Display connection
• I -  12-Pin Connector -T12m-, green
• J -  12-Pin Connector -T12n-, gray
• K -  8-Pin Connector -T8t-, black
• L -  8-Pin Connector -T8p-, brown
• M -  12-Pin Connector -T12l-, blue
• N -  Connection block
• O -  2-Pin Connector -T2dw-, black
  • Optical data bus (MOST bus) connection
