Control Module for Information Electronics 1 -J794-, MMI RADIO (I8E), (I8S), THROUGH JUNE 2019

Component Location

In glove compartment

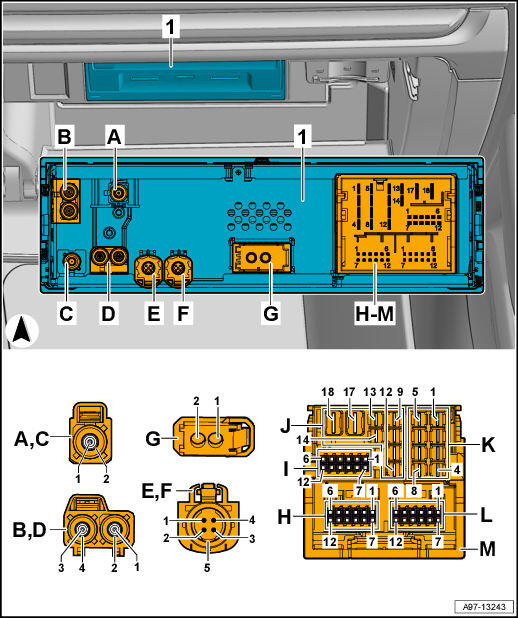

Fig 1: Control Module For Information Electronics 1 -J794- Component Location And Connector End View (MMI Radio (I8E), (I8S), Through June 2019)

Courtesy of AUDI OF AMERICA, LLC

• 1 -  Control Module for Information Electronics 1 -J794-
• A -  2-Pin Connector -T2dna-, black
  • Digital radio antenna connector
• A -  2-Pin Connector -T2dnb-, brown
  • Satellite antenna connection
• B -  4-Pin Connector -T4fc-, purple
  • GSM/LTE antennas connection
  • Where applicable
• C -  2-Pin Connector -T2zia-, blue
  • GPS antenna connector
  • Where applicable
• D -  4-Pin Connector -T4aw-, white
  • Radio Antenna Connection
• E -  4-Pin Connector -T4ae-, purple
  • Display connection
• F -  4-Pin Connector -T4fa-, yellow
  • USB connection
• G -  2-Pin Connector -T2dw-, black
  • Optical data bus (MOST bus) connection
• H -  12-Pin Connector -T12m-, green
• I -  12-Pin Connector -T12n-, gray
• J -  8-Pin Connector -T8t-, black
• K -  8-Pin Connector -T8p-, brown
• L -  12-Pin Connector -T12l-, blue
• M -  Connection block
